Control 40CS/T 8" High-Impact In-Ceiling Subwoofer 100W 100V

« return to previous page

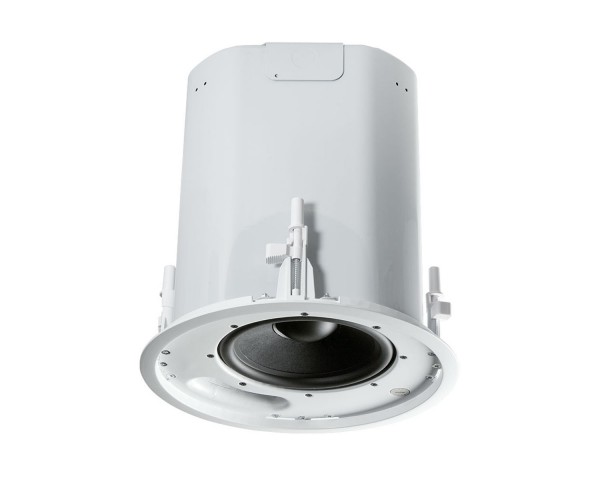

JBL Control 40CS/T 8 High-Impact In-Ceiling Subwoofer 100W 100V - Main Image
Price:
RRP: £780.00 inc VAT
Code:
JBLC40CST
Manufacturer Code:
JBL0789
Brand:
JBL

Quantity required:

Main Features

  • JBL Control 40CS/T 8" Long Throw Ceiling Speaker
  • Extended Bass Response with Maximum Impact
  • Passive Crossover Network
  • Easy to Install Subwoofer-Satellite Systems
  • Switchable 70V/100V or Low-Z
  • Elegant design fits any decor
Share:

Control 40CS/T 8" Long-Throw 100W 100V/60W

The Control 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.

The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.

Product Features

  • Extended Bass Response with Maximum Impact
  • Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
  • Switchable 70V/100V or Low-Z
  • Elegant design fits any décor

Product Specifications

General

  • Frequency Range: 32 Hz - 300 Hz
  • Power Capacity: 200W program, 100W pink noise
  • Sensitivity: 95 dB (near corner), 89 dB (center of ceiling), 1W, 1m
  • 70V/100V Taps: 80W, 40W, 20W (& 10W at 70V only)
  • Nominal Impedance: 8 ohms
  • Component: 8 inch (200 mm) long-throw woofer
  • Termination: Screw-down removable locking clip-in connector
  • Satellite Outputs: Connectors for 2 or 4 Control 42C satellite speakers

Physical & Dimensions

  • Diameter: 332mm
  • Diameter Depth: 338mm

What's in the Box?

  • 1 C-rings
  • 1 Tile Rails
  • 1 Paint Shield
  • 1 Cutout Template
  • 1 Grille
