Control 47C/T 6.5" Extended Bass Ceiling Loudspeaker 75W 100V

« return to previous page

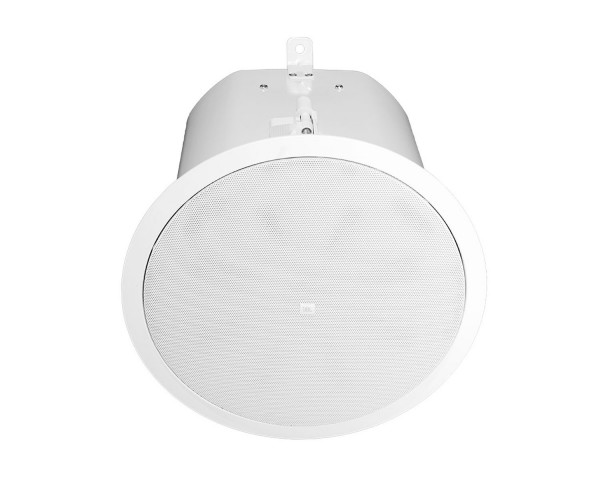

JBL Control 47C/T 6.5 Extended Bass Ceiling Loudspeaker 75W 100V - Main Image
JBL Control 47C/T 6.5 Extended Bass Ceiling Loudspeaker 75W 100V - Image 1
JBL Control 47C/T 6.5 Extended Bass Ceiling Loudspeaker 75W 100V - Image 2
JBL Control 47C/T 6.5 Extended Bass Ceiling Loudspeaker 75W 100V - Image 3
JBL Control 47C/T 6.5 Extended Bass Ceiling Loudspeaker 75W 100V - Image 4
JBL Control 47C/T 6.5 Extended Bass Ceiling Loudspeaker 75W 100V - Image 5
Price:
RRP: £558.00 inc VAT
Code:
JBLC47CT
Manufacturer Code:
JBL0785
Brand:
JBL

Quantity required:

Main Features

  • JBL Control 47C/T Wide Coverage Ceiling Bass
  • Features Proprietary Conical RBI Technology
  • Provides Wide, Consistent Coverage
  • Large Backcan for Bass Response to 55 Hz
  • Flat Frequency Response
  • Ideal for a wide variety of applications
Share:

Control 47C/T Wide-Dispersion Ceiling Speaker 75W 8ohm

The Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. Ideal for a wide variety of applications, the Control 47C/T is perfect for settings ranging from restaurant and retail to large casinos and beyond.

Product Features

  • Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
  • Flat Frequency Response and Superior Performance
  • Large Backcan for Bass Response to 55 Hz
  • Elegant design fits any décor

Product Specifications

General

  • Frequency Range: 55 Hz - 20 kHz
  • Power Capacity: 150W program, 75W pink noise
  • Sensitivity: 91 dB, 1W, 1m
  • 70V/100V Taps: 60W, 30W, 15W (7.5W at 70V only)
  • Coverage: 120° conical, consistent broadband
  • Nominal Impedance: 8 ohms
  • Component: 6.5 inch (135 mm) woofer, 1" tweeter
  • Termination: Screw-down removable locking clip-in connector

Physical & Dimensions

  • Diameter: 305mm
  • Diameter Depth: 259mm

What's in the Box?

  • 1 Set of C-rings
  • 1 Set of Tile Rails
  • 1 Paint Shield
  • 1 Cutout Template
  • 1 Grille
