Control 47LP 6.5" Low Profile Ceiling Loudspeaker 75W 100V

« return to previous page

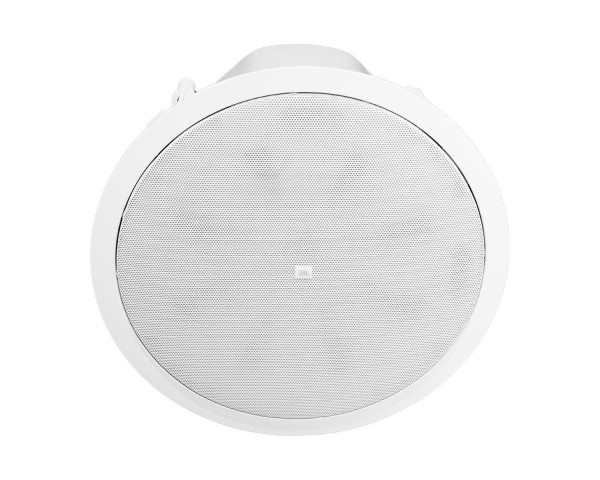

JBL Control 47LP 6.5 Low Profile Ceiling Loudspeaker 75W 100V - Main Image
JBL Control 47LP 6.5 Low Profile Ceiling Loudspeaker 75W 100V - Image 1
JBL Control 47LP 6.5 Low Profile Ceiling Loudspeaker 75W 100V - Image 2
JBL Control 47LP 6.5 Low Profile Ceiling Loudspeaker 75W 100V - Image 3
JBL Control 47LP 6.5 Low Profile Ceiling Loudspeaker 75W 100V - Image 4
JBL Control 47LP 6.5 Low Profile Ceiling Loudspeaker 75W 100V - Image 5
Price:
RRP: £480.00 inc VAT
Code:
JBLC47LP
Manufacturer Code:
JBL0786
Brand:
JBL

Quantity required:

Main Features

  • JBL Control 47LP Wide Coverage Ceiling Speaker
  • Shallow Backcan Version of 47C/T for locations with limited clearance
  • Allows Mixing & Matching of mode
  • Features Proprietary Conical RBI Technology
  • Elegant design fits any decor
  • Wide, Consistent Coverage
Share:

Control 47LP Low Profile Version of C47 (142mm)

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.

Product Features

  • Shallow Backcan Version of 47C/T for locations with limited clearance
  • Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
  • Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
  • Flat Frequency Response and Superior Performance
  • Elegant design fits any décor

Product Specifications

General

  • Frequency Range: 68 Hz - 20 kHz
  • Power Capacity: 150W program, 75W pink noise
  • Sensitivity: 91 dB, 1W, 1m
  • 70V/100V Taps: 60W, 30W, 15W (7.5W at 70V only)
  • Coverage: 120° conical, consistent broadband
  • Nominal Impedance: 8 ohms
  • Component: 6.5 inch (135 mm) woofer, 1" tweeter
  • Termination: Screw-down removable locking clip-in connector

Physical & Dimensions

  • Diameter: 305mm
  • Diameter Depth: 142mm

What's in the Box?

  • 1 Set of C-rings
  • 1 Set of Tile Rails
  • 1 Paint Shield
  • 1 Cutout Template
  • 1 Grille
