DX-IC10 10" 2-Way High-Efficiency Ceiling Speaker White

« return to previous page

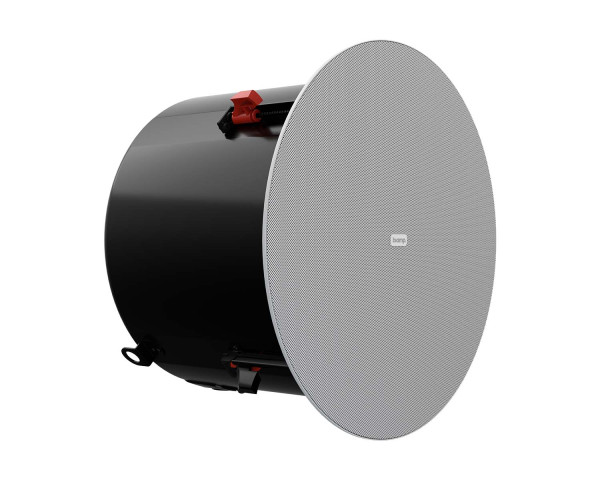

Biamp DX-IC10 10 2-Way High-Efficiency Ceiling Speaker White - Main Image
Price:
RRP: £561.60 inc VAT
Code:
BIADXIC10
Manufacturer Code:
910.0100.900
Brand:
Biamp

Quantity required:

Main Features

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet plenum air space handling requirements
  • Finish: White
Share:

DX-IC10 10" 2-Way High-Efficiency Ceiling Speaker White

The flagship model Desono DX-IC10 exceeds the performance of competing "high-ceiling" models. The DX-IC10 provides high-level foreground music, loud-and-clear paging (even in noisy environments), and readily supports large systems in sports facilities, clubs, or concert venues for delay and zone fill. Compact, affordable replacement for typical 12" competitor ceiling speakers.

DX-IC10s can readily be combined with smaller members of the Desono DX family due to Biamp's uniform voicing technology, providing additional power and LF response in areas that require it. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC10 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

Product Features

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet plenum air space handling requirements
  • Finish: White

Product Specifications

  • Operating Mode:  Passive with DSP
  • Operating Environment:  Indoor
  • Operating Range (-10dB):  58 Hz to 22 kHz
  • Nominal Beamwidth (H x V):  90°, conical
  • Transducers:
    • LF 1 x 10" (254 mm)
    • HF 1 x 1.25" (32 mm) exit compression driver
  • Sensitivity:  98 dB (2.83 V), 98 dB (1W at rated impedance 8 Ω)
  • Nominal Continuous Power Handling:  Passive,  V (150W @ 8 Ω)
  • Nominal Maximum SPL:  Passive, Peak 127 dB, Continuous 121 dB
  • Autoformer:  70V: 200 W, 100 W, 50 W, 25 W; 100V: 200 W, 100 W, 50 W
  • Recommended Amplifiers:  Passive, 200W - 400W @ 8 Ω, (40V - 57V)
  • Crossover Frequency:  1.0 kHz
  • Required Accessory:  58 Hz Electronic high pass filter
  • Input Connection:  4-position Euroblock connector
  • Controls:  Front-face wattage / low impedance selector switch
  • Mounting Provisions:  4 SpringLock mounting clamps with 3-inch grip range
  • Certifications: ETL listed to comply with UL1480, UL2043 and CSA62368-1. Suitable for use in air handling spaces per NFPA 70 and NFPA 90
  • Dimensions:  W x D 394 mm x 263 mm ( 15.51" x 10.37")
  • Weight:  11.15 kg
  • Accessories (included):  C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver

What's in the Box?

  • C-Ring supporting plate
  • Tile support bridge rails
  • Grille
  • Paint mask
  • Cut-out template
  • Flat screwdriver
