DX-IC4LP 4.5

Price:: RRP: £220.80 inc VAT
Code:: BIADXIC4LP
Manufacturer Code:: 910.0103.900
Brand:: Biamp

Main Features

High intelligibility with exceptional uniform coverage
Fast installation with SpringLock™ mounting clamps
Consistent, wide dispersion up to 16 kHz
Shallow depth to fit into confined ceiling spaces
Conduit knock-outs on the input cover meet plenum air space handling requirements
Finish: White

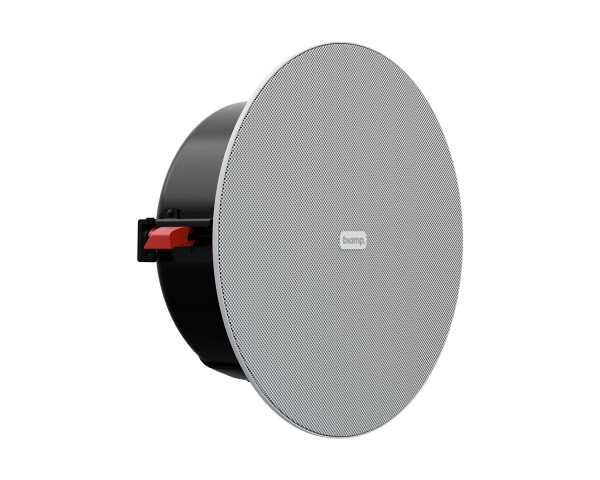

DX-IC4LP 4.5" 2-Way Low-Profile Ceiling Speaker White

Only 3.4" (86 mm) in depth, the DX-IC4LP solves space problems that competing products cannot. Suitable for paging, background music, or to augment larger systems, the DX-IC4LP is a versatile performer. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX family of loudspeakers apart from other products in its size and price range. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC4LP exhibits reduced distortion and industry-leading sensitivity permitting 3dB to 6dB greater output level, while requiring half the amplification power of competing products.

Product Features

High intelligibility with exceptional uniform coverage
Fast installation with SpringLock™ mounting clamps
Consistent, wide dispersion up to 16 kHz
Shallow depth to fit into confined ceiling spaces
Conduit knock-outs on the input cover meet plenum air space handling requirements
Finish: White

Product Specifications

Operating Mode: Passive with DSP
Operating Environment: Indoor
Operating Range (-10dB): 90 Hz to 18.5 kHz
Nominal Beamwidth (H x V): 130°, conical
Transducers:
- LF 1 x 4.5" (114 mm)
- HF 1 x 0.75" (19 mm) exit compression driver
Sensitivity: 92 dB (2.83 V), 92 dB (1W at rated impedance 8 Ω)
Nominal Continuous Power Handling: Passive, 22 V (60W @ 8 Ω)
Nominal Maximum SPL: Passive, Peak 116 dB, Continuous 110 dB
Autoformer: 70V: 30 W, 15 W, 7.5 W, 3.75 W; 100V: 30 W, 15 W, 7.5 W
Recommended Amplifiers: Passive, 60W - 120W @ 8 Ω, (22V - 31V)
Crossover Frequency: 2 kHz
Required Accessory: 90 Hz Electronic high pass filter
Input Connection: 4-position Euroblock connector
Controls: Front-face wattage / low impedance selector switch
Mounting Provisions: 2 SpringLock mounting clamps with 3-inch grip range
Certifications: ETL listed to comply with UL1480, UL2043 and CSA62368-1. Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions: W x D 258 mm x 97 mm ( 10.16" x 3.81")
Weight: 3.175 kg
Accessories (included): C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
