DX-IC6LP-W 6.5

Price:: RRP: £290.40 inc VAT
Code:: BIADXIC6LPW
Manufacturer Code:: 910.0300.900
Brand:: Biamp

Main Features

Low profile, shallow design - only 3.91" (100 mm) deep
High intelligibility with exceptional uniform coverage
Fast installation with SpringLock™ mounting clamps
Attractive edgeless magnetic grille design
Conduit knock-outs on the input cover meet Chicago plenum air space requirements
Available in standard white

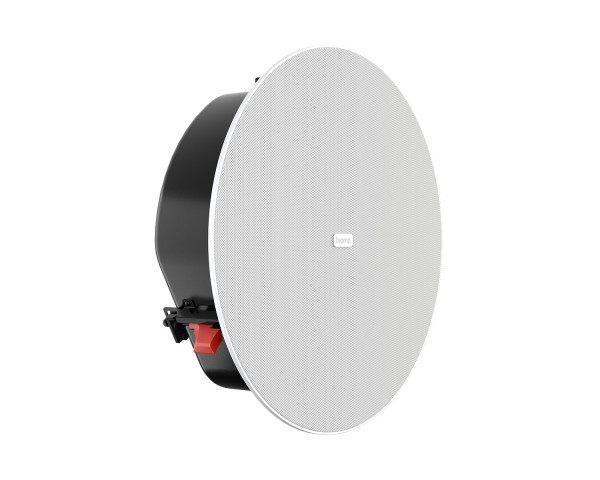

DX-IC6LP-W 6.5" 2-Way Low-Profile Ceiling Speaker White

The powerful and versatile Desono DX-IC6LP is a low profile, shallow design - only 3.91" (100 mm) deep. It provides high quality paging and musical performance suitable for numerous applications where the importance of sonic quality is paired with the need for a low profile installation. The DX-IC6LP system is capable of meeting demanding needs at a cost usually associated with much smaller loudspeakers. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Uniform voicing along the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC6LP apart from other products in its size and price range. Featuring a genuine coaxial, acoustically-aligned driver set with separate magnets for the LF and HF drivers that minimize distortion. Additionally, the integrated HF waveguide provides the widest and most consistent coverage in its class, ensuring all listeners are in the "sweet spot".

Product Features

Low profile, shallow design - only 3.91" (100 mm) deep
High intelligibility with exceptional uniform coverage
Fast installation with SpringLock™ mounting clamps
Attractive edgeless magnetic grille design
Conduit knock-outs on the input cover meet Chicago plenum air space requirements
Available in standard white

Product Specifications

Operating mode: Passive with DSP
Operating environment: Indoor
Operating range (-10dB): 63Hz to 20 kHz
Nominal beamwidth (H x V): 145°, conical
Transducers: LF 1 x 6.5" (165mm) treated paper cone | HF 1 x 1.0" (25mm) treated soft dome driver with waveguide
Sensitivity: 87dB (2.83 V) | 87dB (1 W at rated impedance 8 Ohms)
Nominal continuous power handling: Passive | 22 V (60 w @ 8 Ohms)
Nominal maximum SPL: Passive | Peak: 109dB | Continuous: 103dB
Rated continuous voltage: Passvie | 21.9V (2 dBV)
Rated maximum SPL (processed): Passive | Peak: 115dB | Continuous: 103dB
Autoformer: 70 V: 60 W, 30 W, 15 W, 7.5 W, 3.75 W
100 V: 60 W, 30 W, 15 W, 7.5 W
Recommended amplifiers: Passive | 60 W - 120 W into 8 Ω, (22 V - 31 V)
Crossover frequency: 2.5 kHz
Required accessory: 65 Hz, 18 dB/oct. high pass filter; DSP preset for ALC or Tesira

Physical

Input connection: 4-position Euroblock connector
Controls: Front-face wattage / low impedance selector switch
Mounting provisions: 3 SpringLock™ mounting clamps with 33 mm (1.3") grip range
Certifications: ETL listed to comply with UL1480A, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x D: 341mm x 99mm (13.41" x 3.91")
Weight: 4.9kg (10.8 lbs)
Finish: Refer to data sheet page 3
Model: DX-IC6LP-W - loudspeaker with White grille
