DZR10D 2-Way Bi-Amped Powered Speaker 10" LF+2" HF + DANTE Black

« return to previous page

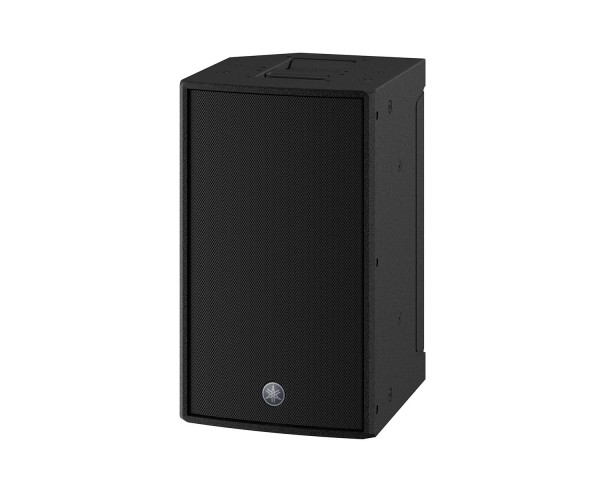

Yamaha DZR10D 2-Way Bi-Amped Powered Speaker 10 LF+2 HF + DANTE Black - Main Image
Yamaha DZR10D 2-Way Bi-Amped Powered Speaker 10 LF+2 HF + DANTE Black - Image 1
Yamaha DZR10D 2-Way Bi-Amped Powered Speaker 10 LF+2 HF + DANTE Black - Image 2
Yamaha DZR10D 2-Way Bi-Amped Powered Speaker 10 LF+2 HF + DANTE Black - Image 3
Yamaha DZR10D 2-Way Bi-Amped Powered Speaker 10 LF+2 HF + DANTE Black - Image 4
Yamaha DZR10D 2-Way Bi-Amped Powered Speaker 10 LF+2 HF + DANTE Black - Image 5
Price:
RRP: £1,869.60 inc VAT
Code:
YAMDZR10D
Manufacturer Code:
DZR 10 D
Brand:
Yamaha

Quantity required:

Main Features

  • 2-way powered loudspeaker with a 2" HF and a 10" LF
  • Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
Share:

DZR10D 2-Way Bi-Amped Powered Speaker 10" LF+2" HF + DANTE Black

The DZR10-D/DZR10-DW is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 137dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10-D/DZR10-DW realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Product Features

  • 2-way powered loudspeaker with a 2" HF and a 10" LF
  • Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover(SPCVR-DZR10)
  • Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement
  • Durable black or white finish

Product Specifications

General

  • Speaker Type:  2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency Range (-10dB):  44Hz - 20kHz
  • Coverage Area:  H90° x V60° (Rotatable)
  • Components
    • LF 10" Cone, 3" Voice Coil, Neodymium magnet
    • HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover:  1.8kHz (FIR-X)
  • Sampling Frequency Rate:  Internal: 96kHz and FIR Filter
  • A/D D/A Converters:  96kHz AD/DA
  • Maximum Output Level (1m; on axis):  137dB SPL *1
  • SRC:  Yes
  • Power Rating
    • Dynamic:  2000W (LF: 1000W, MF/HF: 1000W) *2
    • Burst (20ms):  1100W (LF: 1000W, MF/HF: 100W)
    • Continuous:  950W (LF: 850W, MF/HF: 100W)
  • I/O Connectors
    • Analog I/O
      • Analog IN: Combo x 2, Line level (Maximum +24dBu), Input impedance 20kΩ,
      • Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Digital I/O:  Dante: etherCON CAT5e x 2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
  • Others:  USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC:  IEC AC inlet x 1 (V-Lock)
  • Amplifier Class:  Class-D
  • Cooling:  Fan cooling, Variable speeds
  • Power Consumption:  45W (Idle), 150W (1/8)

Physical

  • Handle:  Aluminium die-cast, Top x 1, Side x 1
  • Rigging:  M10 x 8, M8 x 2
  • Dimensions (W x H x D):  315mm x 537mm (with rubber feet) x 345mm (12.4" x 21.1" x 13.6")
  • Net Weight:  17.9kg (39.5lbs)
  • Options:  U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
  • Others:  Enclosure Material, Finish, Colour: Plywood, Durable Polyurea Painting, Black/White
  • Floor Monitor:  Angle 50°
  • Pole Socket:  Ø35mm x 2 (0° or -7°)

*1 Measured peak SPL with pink noise @1m.

*2 Total peak power of individual outputs (AC 120V, 25°C). This value was measured at minimum load impedance, with protection released.
