DZR12D 2-Way Bi-Amped Powered Speaker 12

« return to previous page

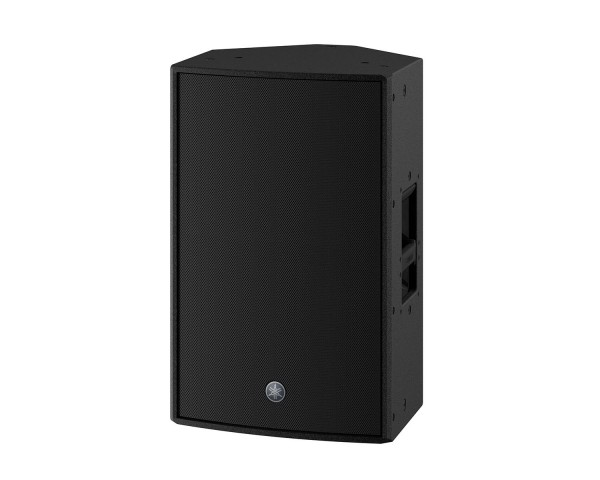

Yamaha DZR12D 2-Way Bi-Amped Powered Speaker 12 LF+ 2 HF + DANTE Blk - Image 1

Yamaha DZR12D 2-Way Bi-Amped Powered Speaker 12 LF+ 2 HF + DANTE Blk - Image 2

Yamaha DZR12D 2-Way Bi-Amped Powered Speaker 12 LF+ 2 HF + DANTE Blk - Image 3

Yamaha DZR12D 2-Way Bi-Amped Powered Speaker 12 LF+ 2 HF + DANTE Blk - Image 4

Yamaha DZR12D 2-Way Bi-Amped Powered Speaker 12 LF+ 2 HF + DANTE Blk - Image 5

Price:: RRP: £2,018.40 inc VAT
Code:: YAMDZR12D
Manufacturer Code:: DZR 12 D
Brand:: Yamaha

Main Features

2-way powered loudspeaker with a 2" HF and a 12" LF
Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s professional audio demands
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility

DZR12D 2-Way Bi-Amped Powered Speaker 12" LF+ 2" HF + DANTE Black

The DZR12-D/DZR12-DW is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D/DZR12-DW realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Product Features

2-way powered loudspeaker with a 2" HF and a 12" LF
Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s professional audio demands
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Optional speaker cover (SPCVR-DZR12)
Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement
Durable black or white finish

Product Specifications

General

Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB): 39Hz - 20kHz
Coverage Area: H90° x V60° (Rotatable)
Components
- LF 12" Cone, 3" Voice Coil, Neodymium magnet
- HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.8kHz (FIR-X)
Sampling Frequency Rate: Internal: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum Output Level (1m; on axis): 139dB SPL *1
SRC: Yes
Power Rating
- Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) *2
- Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
- Continuous: 950W (LF: 850W, MF/HF: 100W)
I/O Connectors
- Analog I/O
  - Analog IN: Combo x 2, Line level (Maximum +24dBu), Input impedance 20kΩ,
  - Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Digital I/O: Dante: etherCON CAT5e x 2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC: IEC AC inlet x 1 (V-Lock)
Amplifier Class: Class-D
Cooling: Fan cooling, Variable speeds
Power Consumption: 45W (Idle), 150W (1/8)

Physical

Handle: Aluminium die-cast, Side x 2
Rigging: M10 x 12
Dimensions (W x H x D): 410mm x 646mm (with rubber feet) x 394mm (16.1" x 25.4" x 15.5")
Net Weight: 21.4kg (47.2lbs)
Options: U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others: Enclosure Material, Finish, Colour: Plywood, Durable Polyurea Painting, Black/White
Floor Monitor Angle: 50° Symmetrical
Pole Socket: Ø35mm x 2 (0° or -7°)

*1 Measured peak SPL with pink noise @1m.

*2 Total peak power of individual outputs (AC 120V, 25°C). This value was measured at minimum load impedance, with protection released.
