DZR315D 3-Way Bi-Amped Powered Speakers 15" LF+2" HF+8" MF DANTE

« return to previous page

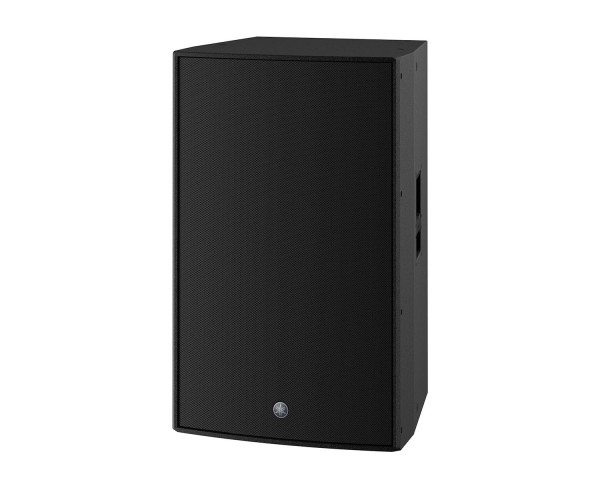

Yamaha DZR315D 3-Way Bi-Amped Powered Speakers 15 LF+2 HF+8 MF DANTE - Main Image
Yamaha DZR315D 3-Way Bi-Amped Powered Speakers 15 LF+2 HF+8 MF DANTE - Image 1
Yamaha DZR315D 3-Way Bi-Amped Powered Speakers 15 LF+2 HF+8 MF DANTE - Image 2
Yamaha DZR315D 3-Way Bi-Amped Powered Speakers 15 LF+2 HF+8 MF DANTE - Image 3
Yamaha DZR315D 3-Way Bi-Amped Powered Speakers 15 LF+2 HF+8 MF DANTE - Image 4
Yamaha DZR315D 3-Way Bi-Amped Powered Speakers 15 LF+2 HF+8 MF DANTE - Image 5
Price:
RRP: £2,696.40 inc VAT
Code:
YAMDZR315D
Manufacturer Code:
DZR 315 D
Brand:
Yamaha

Quantity required:

Main Features

  • 3-way powered loudspeaker with a 2" HF, an 8" MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
Share:

DZR315D 3-Way Bi-Amped Powered Speakers 15" LF+2" HF+8" MF DANTE Black

The DZR315-D/DZR315-DW is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-inclass SPL performance, sophisticated DSP processing, unrivaled lowfrequency sound reproduction—the DZR315-D/DZR315-DW delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

Product Features

  • 3-way powered loudspeaker with a 2" HF, an 8" MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR315)
  • Durable black or white finish

Product Specifications

General

  • Speaker Type:  3-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency Range (-10dB):  31Hz - 20kHz
  • Coverage Area:  H75° x V50° (Rotatable)
  • Components
    • LF 15" Cone, 3" Voice Coil, Neodymium magnet
    • MF 8" Cone, 1.5" Voice Coil, Ferrite magnet
    • HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover:  700Hz (FIR-X), 2.5kHz (Passive)
  • Sampling Frequency Rate:  Internal: 96kHz and FIR Filter
  • A/D D/A Converters:  96kHz AD/DA
  • Maximum Output Level (1m; on axis):  139dB SPL *1
  • SRC:  Yes
  • Power Rating
    • Dynamic:  2000W (LF: 1000W, MF/HF: 1000W) *2
    • Burst (20ms):  1100W (LF: 1000W, MF/HF: 100W)
    • Continuous:  950W (LF: 850W, MF/HF: 100W)
  • I/O Connectors
    • Analog I/O
      • Analog IN: Combo x 2, Line level (Maximum +24dBu), Input impedance 20kΩ,
      • Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
    • Digital I/O:  Dante: etherCON CAT5e x 2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
    • Others:  USB2.0 Host 5V 500mA for USB memory DATA storage/load
    • AC:  IEC AC inlet x 1 (V-Lock)
  • Amplifier Class:  Class-D
  • Cooling:  Fan cooling, Variable speeds
  • Power Consumption:  45W (Idle), 150W (1/8)

Physical

  • Handle: Aluminium die-cast, Side x 2
  • Rigging:  M10 x 16
  • Dimensions (W x H x D):  550mm x 897mm (with rubber feet) x 520mm (21.6" x 35.3" x 20.5")
  • Net Weight:  41.6kg (91.7lbs)
  • Options:  Cover: SPCVR-DZR315
  • Others:  Enclosure Material, Finish, Colour: Plywood, Durable Polyurea Painting, Black/White

*1 Measured peak SPL with pink noise @1m.

*2 Total peak power of individual outputs (AC 120V, 25°C). This value was measured at minimum load impedance, with protection released.
