H2 4" Dome Speaker 4/16Ω 100V/40W White

« return to previous page

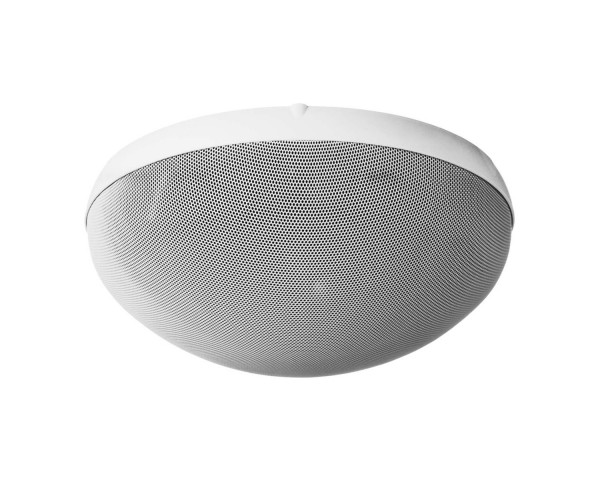

TOA H2 4 Dome Speaker 4/16Ω 100V/40W White - Main Image
Price:
RRP: £192.00 inc VAT
Code:
TOAH2
Manufacturer Code:
H-2
Brand:
TOA

Quantity required:

Main Features

  • 2-way design speaker
  • Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
  • Narrow coverage area allows a controlled sound
  • Sound direction can be adjusted within 360°
  • High power handling of 120 W (continuous program)
  • Fire-rated ABS enclosure (UL 94-V0)
Share:

H2 4" Dome Speaker 4/16Ω 100V/40W White

The H-2 is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface.

Product Features

  • 2-way design speaker
  • Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
  • Narrow coverage area allows a controlled sound
  • Sound direction can be adjusted within 360°
  • High power handling of 120 W (continuous program)
  • Fire-rated ABS enclosure (UL 94-V0)

Product Specifications

  • Frequency response:  100 Hz - 20 kHz
  • Connection:  Detachable screw terminal
  • Sensitivity (1 W, 1 m):  88 dB
  • Speaker component:  Low: 10 cm cone-type, High: Balanced dome-type
  • Rated input (High Impedance):  12 W
  • Tappings:  12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)
  • Rated impedance:  4 Ω, 16 Ω
  • Rated Input (Low Impedance):  120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm)
  • Finish:  Steel plate, ABS resin, paint, signal white (RAL 9003 or equivalent)
  • Dimensions:  268 x 111 mm (Ø x D)
  • Weight:  2.1 kg

What’s in the Box?

  • Base frame x 1
  • Electrical box mounting screw x 1 set

Product Downloads
