H1 8x2

Price:: RRP: £174.00 inc VAT
Code:: TOAH1
Manufacturer Code:: H-1
Brand:: TOA

Main Features

Sleek and attractive 2-way design speaker
Ferrofluid-cooled balanced dome tweeters and neodymium magnet cone woofers
Narrow coverage area allows a controlled sound
Sound direction can be adjusted within 90°
Built-in transformer allows both high and low impedance
High power handling

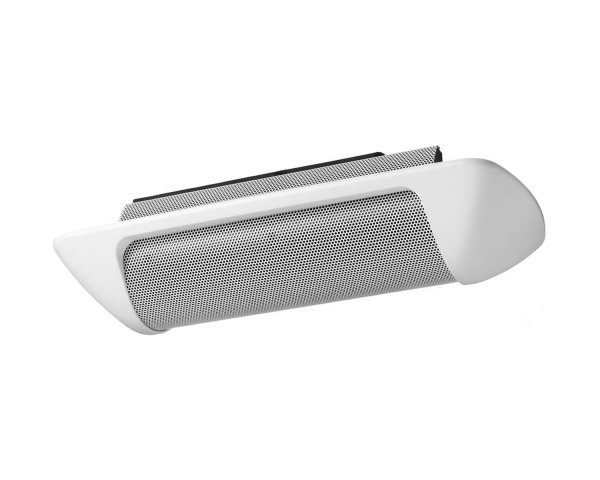

H1 8x2" Rotatable Cylinder Speaker 100V/90W White

The H-1 is a cylinder-shaped, small flush-mount 2-way speaker that ensures quality sound reproduction. The mounting angle for its enclosure can be adjusted for up to 90 degrees.

Product Features

Sleek and attractive 2-way design speaker
Ferrofluid-cooled balanced dome tweeters and neodymium magnet cone woofers
Narrow coverage area allows a controlled sound
Sound direction can be adjusted within 90°
Built-in transformer allows both high and low impedance
High power handling
Easy installation in standard electrical gang boxes
Fire-rated ABS enclosure (UL 94-V0)

Product Specifications

Frequency response: 120 Hz - 20 kHz
Connection: Detachable screw terminal
Sensitivity (1 W, 1 m): 85 dB (at installation in 1/2 free sound field)
Speaker component: 8 x 5 cm cone woofer (neodymium magnet); 2.5 cm balanced dome tweeter
Rated input (High Impedance): 12 W
Tappings: 100 V : 830 Ω (12 W) / 1.7 kΩ (6 W) / 3.3 kΩ (3 W)
Rated impedance: 4 Ω, 16 Ω
Rated Input (Low Impedance): 90 W (continuous program, 4 Ohm), 30 W (continuous pink noise, 4 Ohm)
Finish: ABS resin, paint, signal white (RAL 9003 or equivalent)
Dimensions: 312 x 126 x 90 mm (W x H x D)
Weight: 1.5 kg
