H2WP 4" Dome Speaker Weatherproof Version

« return to previous page

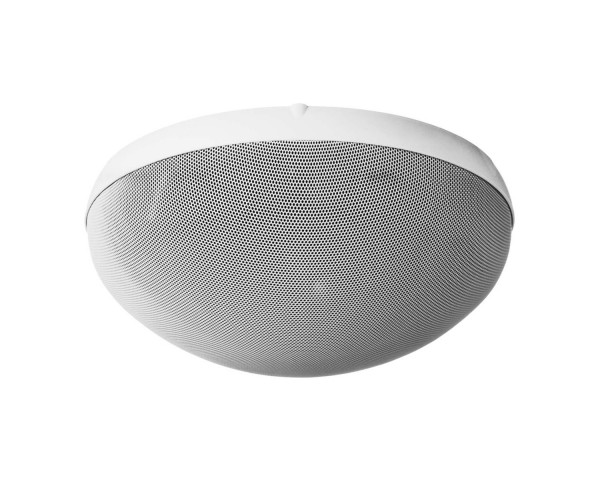

TOA H2WP 4 Dome Speaker Weatherproof Version - Main Image
Price:
RRP: £222.00 inc VAT
Code:
TOAH2WP
Manufacturer Code:
H-2WP
Brand:
TOA

Quantity required:

Main Features

  • 2-way design speaker
  • Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
  • Sound direction can be adjusted within 360°
  • High power handling of 120 W (continuous program)
  • Fire-rated ABS enclosure (UL 94-V0)
  • Weatherproof IP64 certified
Share:

H2WP 4" Dome Speaker Weatherproof Version

Designed for outdoor-use applications, the H-2WP is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface. (For the installation on walls, however, keep the speaker facing down within 45 degrees left and right each.)

Product Features

  • 2-way design speaker
  • Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
  • Narrow coverage area allows a controlled sound
  • Sound direction can be adjusted within 360°
  • High power handling of 120 W (continuous program)
  • Fire-rated ABS enclosure (UL 94-V0)
  • Weatherproof IP64 certified

Product Specifications

  • Frequency response:  100 Hz - 20 kHz
  • Connection:  Detachable screw terminal
  • Sensitivity (1 W, 1 m):  88 dB
  • Speaker component:  Low: 10 cm cone-type, High: Balanced dome-type
  • Rated input (High Impedance):  12 W
  • Tappings:  12 / 6 / 3 W (100 V), 12 / 6 / 3 / 1.5 W (70 V)
  • Rated impedance:  4 Ω, 16 Ω
  • Rated Input (Low Impedance):  120 W (continuous program, 4 Ohm), 40 W (continuous pink noise, 4 Ohm)
  • IP Rating: IP64
  • Finish:  Steel plate, ABS resin, paint, signal white (RAL 9003 or equivalent)
  • Dimensions:  268 x 111 mm (Ø x D)
  • Weight:  2.1 kg

What’s in the Box?

  • Base frame x 1
  • Electrical box mounting screw x 1 set

Product Downloads
