Jolt 300 Strobe Fixture 144x1.5W RGB and 144x0.5W White LEDs

« return to previous page

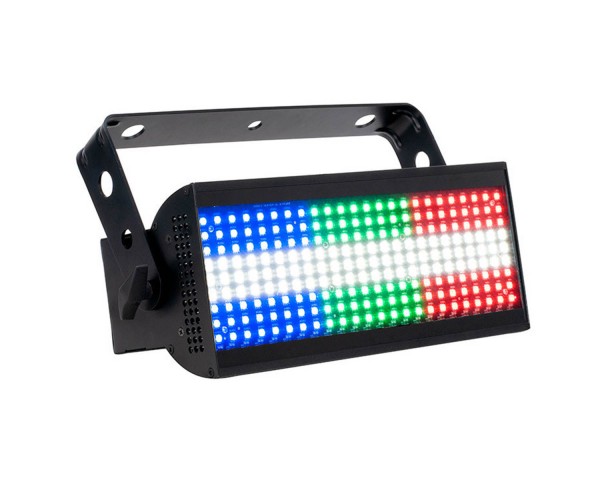

ADJ Jolt 300 Strobe Fixture 144x1.5W RGB and 144x0.5W White LEDs - Main Image

ADJ Jolt 300 Strobe Fixture 144x1.5W RGB and 144x0.5W White LEDs - Image 1

ADJ Jolt 300 Strobe Fixture 144x1.5W RGB and 144x0.5W White LEDs - Image 2

ADJ Jolt 300 Strobe Fixture 144x1.5W RGB and 144x0.5W White LEDs - Image 3

Price:: RRP: £478.80 inc VAT
Code:: ADJ1215200019
Manufacturer Code:: 1215200019
Brand:: ADJ

Main Features

An innovative multi-use strobe/eye candy fixture
144 1.5W RGB SMD LED for colour strobing and eye candy effects
The Jolt 300’s massive light output is specifically designed for large stages, nightclubs, live events and touring.
3 Section RGB control
64 built-in Color Macros
32 built-in programs

Jolt 300 Strobe Fixture 144x1.5W RGB LEDs & 144x0.5W CW LEDs

The ADJ Jolt 300 is an innovative multi-use strobe/eye candy fixture. It uses 144 1.5W RGB SMD LED for colour strobing and eye candy effects, and 144 .5W white SMD LED located in the centre of the fixture to create the traditional look of a strobe. Zone chasing control provides an eye-candy effect when used together with the white LEDs. The Jolt 300’s massive light output is specifically designed for large stages, nightclubs, live events and touring.

The rear panel has conveniently located connections with 3-pin and 5-pin DMX input connections along with a Locking Power input to receive power. On the other side of the rear panel are the 3-pin and 5-pin DMX outs and the locking power out connections. This enables the unit to receive and pass-through power and data to another Jolt 300 fixture. There is also a USB input that allows uses a fast and convenient way to update the firmware.

The Jolt 300 offers users an easy way to navigate the built-in features from an LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, colour macros, LED refresh rate, gamma settings and DMX channel modes.

A scissor yoke and an omega bracket come with the fixture so it can be attached to a clamp and hung on a truss.

Product Features

An innovative multi-use strobe/eye candy fixture
144 1.5W RGB SMD LED for colour strobing and eye candy effects
The Jolt 300’s massive light output is specifically designed for large stages, nightclubs, live events and touring.
3 Section RGB control
64 built-in Color Macros
32 built-in programs

Product Specifications

Light Source

144x 1.5W RGB SMD LEDs + 144x .5W Cool White SMD LEDs
120-degree Beam Angle
6000k Color Temperature (White LED’s only)
50,000 Hour Average LED Life

Control

Control Protocol: DMX
6 DMX Modes: 4, 8, 10, 10a, 12,15, 18 and 18a
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Speed control (0.1~10 Seconds)
0-100% Dimming
Strobe, shutter & pulse control
Adjustable LED Refresh Rates (900~25kHz)
Adjustable Gamma Settings (1.0-2.8)
With Wired Digital Communication Network
Display: LCD display with 4-button touch menu
Compatible with ADJ’s UC IR wireless remote

Connections

Data: Locking 3-pin & 5-pin DMX In/Out
Locking Power In/Out to daisy chain power
Scissor yoke
Omega bracket attachment
Safety bolt
USB port to update firmware

Electrical

100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 226W

Dimensions / Weight

Length: 16” (405mm)
Width: 7” (175mm)
Height: 5.25” (130mm)
Weight: 8.5 lbs. (3.8kg)

What’s in the Box?

1x Omega Bracket
1x Quicklock Omega bracket
1x Locking Power power cable
1x UC-IR Remote

Product Downloads

Jolt 300 User Manual
