KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone

« return to previous page

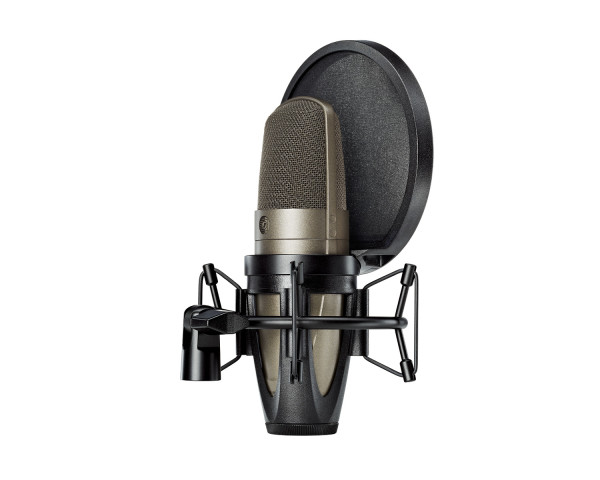

Shure KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone - Main Image
Shure KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone - Image 1
Shure KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone - Image 2
Shure KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone - Image 3
Shure KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone - Image 4
Shure KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone - Image 5
Price:
RRP: £768.00 inc VAT
Code:
SHUKSM42SG
Manufacturer Code:
KSM42/SG
Brand:
Shure

Quantity required:

Main Features

  • Highly consistent cardioid polar pattern creates a broad “sweet spot” and natural off-axis response
  • Dual-diaphragm design with an active front, ultra thin (2.5 micron) 24-karat gold, low mass, 1-inch Mylar® diaphragm
  • Passive back diaphragm delivers exceptional control of low frequency proximity effect
  • Tailored low-frequency roll-off minimizes low frequency room noise
  • Integrated three-stage mesh grille guards against wind and breath noise
  • Features a Shock Mount and Magnetic Pop Filter
Share:

KSM42/SG Cardioid Condenser Large Dual-Diaphragm Microphone

This premium side-address, cardioid condenser microphone features a large dual-diaphragm optimized for world-class vocal recording and performance applications. With a tailored frequency response and extensive internal and external pop filtering, the single-pattern, dual-diaphragm design of the KSM42 exhibits an exceptionally smooth frequency response and ultra-wide dynamic range. The KSM42 is the premier choice for capturing sophisticated and intimate vocal performances.

Product Features

  • Highly consistent cardioid polar pattern creates a broad “sweet spot” and natural off-axis response
  • Dual-diaphragm design with an active front, ultra thin (2.5 micron) 24-karat gold, low mass, 1-inch Mylar® diaphragm
  • Passive back diaphragm delivers exceptional control of low frequency proximity effect
  • Tailored low-frequency roll-off minimizes low frequency room noise
  • Integrated three-stage mesh grille guards against wind and breath noise
  • Open cage ShureLock® rubber suspension shock mount with low-profile Popper Stopper™ magnetic pop filter produces a natural space between performer and microphone
  • Prethos™ Advanced Preamplifier Technology exhibits extremely low self-noise with superior dynamic range, transient response and ultra-low distortion for transparent recording
  • Premium electronic components and gold-plated internal and external connectors
  • Durable zinc die-cast housing and hardened low carbon steel grille
  • Internal shock mount to reduce unwanted handling and stand noise

Product Specifications

  • Transducer Type:  Dual-Diaphragm, Front-Active, Externally Biased Condenser
  • Frequency Response:  60 to 20,000 Hz
  • Polar Pattern:  Cardioid
  • Output Impedance:  147 ohms
  • Sensitivity (at 1 kHz, open circuit voltage) −37 dBV/Pa (14.1 mV):  1 Pascal=94 dB SPL
  • Maximum SPL (1 kHz at 1% THD):
    • 1000 ohms load:  139 dB
    • 2500 ohms load:  139 dB
  • Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz):  86 dB S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
  • Dynamic Range (at 1 kHz):
    • 1000 ohms load:  131 dB
    • 2500 ohms load:  131 dB
  • Common Mode Rejection (10 Hz to 100 kHz):  > 60 dB
  • Clipping Level (20Hz-20 kHz at 1% THD):
    • 1000 ohms load:  6.5 dBV
    • 2500 ohms load:  8 dBV
  • Self Noise (typical, equivalent SPL, A-weighted):  8.5 dB
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Weight:  Net: 494 g. with shock mount and pop filter: 820 g
  • Connector:  Three-pin professional audio (XLR), male
  • Power Requirements:  11 to 52 Vdc phantom, 6 mA

What's in the Box?

  • 1 x A42SM Shurelock Rubber Suspension Shock Mount
  • 1 x A42PF Popper Stopper Magnetic Pop-Filter
  • 1 x AK42C Zippered Carrying Case
  • 1 x A42VB Protective Velveteen Pouch
  • 1 x A42OR Spare Set of Rubber Suspension Shock Mount O Rings
