PGA27 Cardioid Condenser Microphone with Shock Mount + Case

« return to previous page

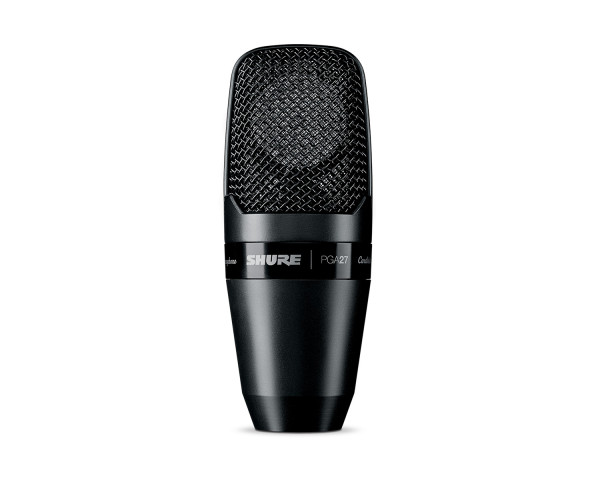

Shure PGA27 Cardioid Condenser Microphone with Shock Mount + Case - Main Image
Shure PGA27 Cardioid Condenser Microphone with Shock Mount + Case - Image 1
Shure PGA27 Cardioid Condenser Microphone with Shock Mount + Case - Image 2
Price:
RRP: £254.40 inc VAT
Code:
SHUPGA27LC
Manufacturer Code:
PGA27-LC
Brand:
Shure

Quantity required:

Main Features

  • Large diaphragm cartridge provides wider dynamic range for clear highs and strong lows
  • Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
  • Updated industrial design with black metallic finish and grille for unobtrusive visual presence
  • High-pass filter for additional control of unwanted low-end signal
  • -15dB switchable attenuator for additional SPL versatility
  • Shock mount included for additional set-up stability and minimization of transient noise
Share:

PGA27-LC Cardioid Condenser Microphone with Shock Mount + Case

Large-diaphragm cardioid side-address condenser microphone designed for clear capture of vocal, acoustic, recording applications and live performance. Features include, a high-pass filter, and a switchable attenuator for SPL versatility.

Product Features

  • Large diaphragm cartridge provides wider dynamic range for clear highs and strong lows
  • Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
  • Updated industrial design with black metallic finish and grille for unobtrusive visual presence
  • High-pass filter for additional control of unwanted low-end signal
  • -15dB switchable attenuator for additional SPL versatility
  • Shock mount included for additional set-up stability and minimization of transient noise
  • Padded zipper case included for additional protection during storage or transport
  • Legendary Shure quality design and construction for exceptional performance in rigorous environments

Product Specifications

  • Type:  Electret Condenser
  • Polar Pattern:  Cardioid
  • Frequency Response:  20 to 20,000 Hz
  • Output Impedance at 1 kHz, open circuit voltage: 115 Ω, actual
  • Sensitivity at 1 kHz, open circuit voltage:  -35 dBV/Pa [1] (17.8 mV)
  • Maximum SPL:  (1 kHz at 1% THD, 1 kΩ load) (130 dB SPL Pad Off (145 dB SPL Pad On))
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Switch:  15 dB Pad, High Pass Filter
  • Connector:  Three-pin professional audio (XLR), male
  • Weight:  453 g (1.0 lbs)
  • Housing:  Cast Zinc
  • Power Requirements:  48 V DC phantom power (3.9 mA)

What's in the Box?

  • 1 x Shock mount
  • 1 x Carrying case
