KSM44A/SL Cardioid/Omni/Bidirectional Large Diaphragm Microphone

« return to previous page

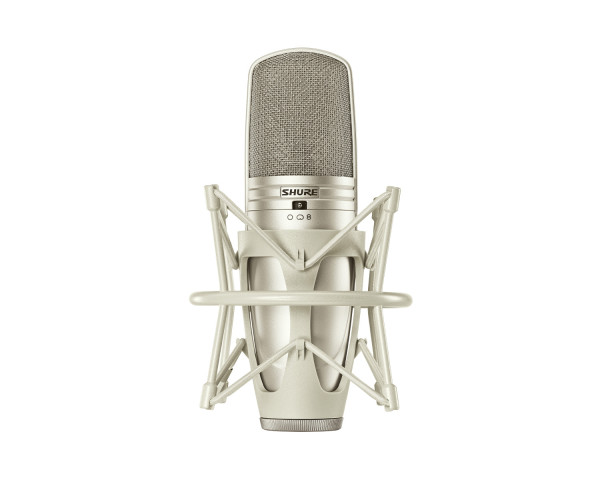

Shure KSM44A/SL Cardioid/Omni/Bidirectional Large Diaphragm Microphone - Main Image
Shure KSM44A/SL Cardioid/Omni/Bidirectional Large Diaphragm Microphone - Image 1
Shure KSM44A/SL Cardioid/Omni/Bidirectional Large Diaphragm Microphone - Image 2
Shure KSM44A/SL Cardioid/Omni/Bidirectional Large Diaphragm Microphone - Image 3
Price:
RRP: £978.00 inc VAT
Code:
SHUKSM44ASL
Manufacturer Code:
KSM44A/SL
Brand:
Shure

Quantity required:

Main Features

  • Multiple polar patterns–cardioid, omnidirectional and bidirectional
  • Dual 1 inch, externally biased, ultra-thin, 2.5 μm, 24 Karat gold-layered, low mass diaphragms
  • Class A, discrete, transformerless preamplifier
  • Premium electronic components and gold-plated internal and external connectors
  • Subsonic filter eliminates rumble from mechanical vibration below 17 Hz.
  • Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs)
Share:

KSM44A/SL Cardioid/Omni/Bidirectional Large Diaphragm Microphone

The Shure® KSM44A is a premium, large-diaphragm, side-address condenser microphone with multiple polar pattern options (cardioid, omnidirectional, bidirectional). The refined and sophisticated design of the KSM44A features externally biased, dual 1-inch diaphragms, extensive internal pop filtering and Prethos® advanced preamplifier technology for a ground-breaking threshold minimum of self-noise. The KSM44A is the premier choice for the highest level of professional studio and stage performance.

Product Features

  • A milestone technical achievement, Shure’s Prethos™ Advanced Preamplifier Technology provides 4dB of self-noise and max SPL of 131 dB for a total dynamic range of 127 dB – an increase of 7 dB that defines the new standard for cleanly nuanced audio capture
  • Multiple polar patterns–cardioid, omnidirectional and bidirectional–for maximum flexibility in a wide variety of recording applications
  • Dual 1 inch, externally biased, ultra-thin, 2.5 μm, 24 Karat gold-layered, low mass diaphragms provide superior transient response
  • Class A, discrete, transformerless preamplifier for transparency, extremely wide frequency response and no crossover distortion. Minimizes harmonic and intermodulation distortions.
  • Premium electronic components and gold-plated internal and external connectors
  • Subsonic filter eliminates rumble from mechanical vibration below 17 Hz.
  • Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs)
  • 3-position switchable low-frequency filter helps reduce unwanted stand vibration noise or counteract proximity effect
  • Integrated three-stage “pop” protection grille reduces plosives and other breath noise

Product Specifications

  • Cartridge Type:  Condenser (externally biased)
  • Polar Pattern:  Cardioid, Omnidirectional, Bidirectional
  • Frequency Response:  20 to 20,000 Hz
  • Output Impedance:  50 ohms
  • Attenuator Switch:  15 dB
  • Low-Frequency Filter Switch:  Flat, –6 dB/octave below 115 Hz, or –18 dB/octave below 80 H
  • Power Requirements:  11–52 V DC phantom power (IEC-61938) 5.8 mA, maximum
  • Common Mode Rejection (10 to 100,000 Hz):  > 50 dB
  • Common Mode Rejection (20 Hz to 20 kHz):  > 50 dB
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Net Weight:  492 g (17.4 oz.)
  • Connector:  Three-pin professional audio (XLR). male, balanced

What's in the Box?

  • 1 x A44AM ShureLock® Stand Mount
  • 1 x AK44C Zippered Carrying Case
  • 1 x A44ASM ShureLock® Elastic Shock Mount
  • 1 x RK383 Suspension Shock Mount Elastic Cord, Cristal (contains two)
  • 1 x A44AVB Protective Velveteen Pouch
