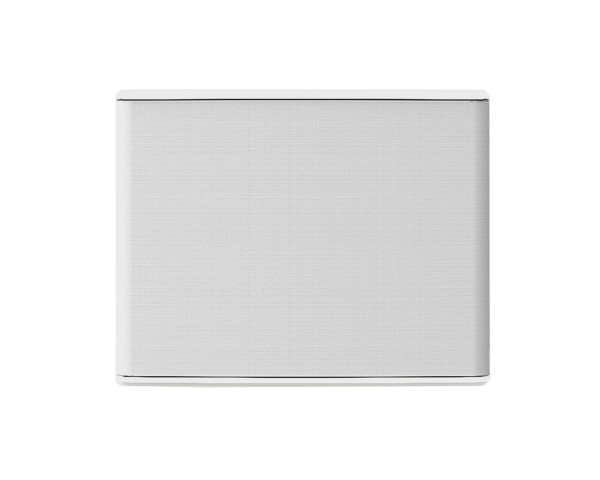

L15-I 15" Install Subwoofer with Neodymium Driver 4Ω White

« return to previous page
NEXO L15-I 15 Install Subwoofer with Neodymium Driver 4Ω White - Main Image
NEXO L15-I 15 Install Subwoofer with Neodymium Driver 4Ω White - Image 1
NEXO L15-I 15 Install Subwoofer with Neodymium Driver 4Ω White - Image 2
Price:
RRP: £2,596.75 inc VAT
Code:
NEXL15UIPW
Manufacturer Code:
01L..15UI-PW
Brand:
NEXO

Quantity required:

Main Features

  • Install version of L15 sub
  • Fabric grille cover and quick-connect push connector
  • Extends LF performance to 40Hz
  • 139dB peak SPL
  • 1 x 15" long-excusion Neodymium driver
  • Threaded inserts on the back and on both sides for connection of mounting accessories
Share:

L15 15" Install Subwoofer with Neodymium Driver 4Ω White

Measuring 550mm wide x 439mm high x 650mm deep, the installation version of the L15 sub employs a 15″ long excursion driver in Baltic birch / poplar plywood cabinet with a fabric covered grille and threaded inserts for mounting accessories, and quick-connect push connector. With a frequency range of 40Hz-120Hz, and 139dB Peak SPL, the L15 is perfect for extending the low frequency response of P+ Series installations.

Product Features

  • Install version of L15 sub
  • Fabric grille cover and quick-connect push connector
  • Extends LF performance to 40Hz
  • 139dB peak SPL
  • 1 x 15" long-excusion Neodymium driver
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Available in black, white and custom RAL colours

Product Specifications

  • Frequency Response (+6 dB):  40 Hz - 120 Hz
  • Peak SPL Level (1m):  139 dB Peak
  • Recommended Amplifiers:  850 to 1350 Watts / 4Ω
  • Crossover Frequency:  85 Hz, 120 Hz
  • Nominal Impedance:  4Ω
  • Components:  1x 15" – 4 ohms – Long excursion – Neodymium driver
  • Connectors:  Quick-connect push connector
  • Rigging Points:  1 x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
  • Material:  Custom made bent plywood of Baltic birch and poplar
  • Finish:  Black or white structural paint
  • Front Finish:  Steel front grille
  • Weight:  35 kg
  • Height x Width x Depth:  439mm x 550mm x 650 mm (17.3” x 21.7” x 25.6”)
  • Operating Temperature Range:  0°C - 40°C (32°F - 104°F)
  • Storage Temperature Range:  20°C - 60°C (-4°F - 140°F)
  • System Operation:
  • Recommended Powering Solution:  NXAMP4X2MK2: Up to 2 x L15 per channel
  • Optional Powering Solutions:
    • NXAMP4x1MK2: 1 x L15 per channel
    • NXAMP4X4MK2: Up to 2 x L15 per channel
