MMS3404D Delegate Microphone Set 460mm Cardioid Gooseneck

« return to previous page

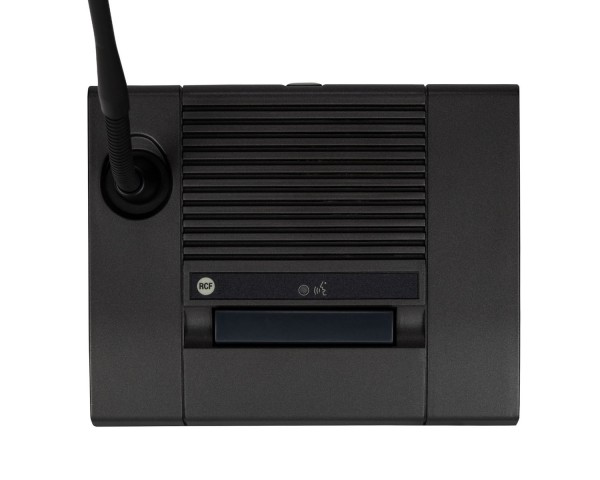

RCF MMS3404D Delegate Microphone Set 460mm Cardioid Gooseneck - Main Image
RCF MMS3404D Delegate Microphone Set 460mm Cardioid Gooseneck - Image 1
RCF MMS3404D Delegate Microphone Set 460mm Cardioid Gooseneck - Image 2
Price:
RRP: £336.00 inc VAT
Code:
RCFMMS3404D
Manufacturer Code:
14322020
Brand:
RCF

Quantity required:

Main Features

  • MMS3404D Pro Cardioid Delegate Microphone Unit
  • PRO-quality cardioid microphone with LED ring mounted on 46cm gooseneck
  • Push-to-lock switch for microphone activation in mixed mode, with LED indicator
  • Hi quality transducer for sound reinforcement purpose, automatically disabled when microphone is active
  • RJ 45 terminals for daisy-chain link to MMS 3405P chairman console through CAT5 FTP cable
  • Robust shielded enclosure suitable for desktop or semi-flush mounting
Share:

MMS3404D Pro Cardioid Delegate Microphone Unit

The desktop delegate microphone set MMS 3404D features a latched button to enable the microphone in mixed mode with other active MMS 3404D and MMS 3405P (if no priority button has been pressed on chairman’s set). The button is completed with a LED indicator, lit when pressed.

Furthermore the microphone capsule has a LED ring that is ON when the microphone is active. The 46 cm gooseneck microphone mounted on the console has a cardioid pattern, while the miniature high quality transducer assures a good sound reinforcement in small size rooms without needing an additional sound reinforcement system. MMS 3404D are cascaded directly to one or both inputs available on MMS 3405P, by means of CAT 5FTP cable provided.

Product Features

  • MMS3404D Pro Cardioid Delegate Microphone Unit
  • PRO-quality cardioid microphone with LED ring mounted on 46cm gooseneck
  • Push-to-lock switch for microphone activation in mixed mode, with LED indicator
  • Hi quality transducer for sound reinforcement purpose, automatically disabled when microphone is active
  • RJ 45 terminals for daisy-chain link to MMS 3405P chairman console through CAT5 FTP cable
  • Robust shielded enclosure suitable for desktop or semi-flush mounting

Product Specifications

General

  • Connections
    • CABLE: FTP CAT 5
    • CONNECTORS: RJ45
    • MAX NUMBER IN DAISY-CHAIN: 79
    • MIXING: Yes
  • Console specifications
    • CONSOLE TYPE: Conference
    • LED INDICATORS: Yes
    • WORKING WITH: FORUM 3000
  • Microphonespecifications
    • DIRECTIVITY: Hypercardioid
    • FREQUENCY RESPONCE (-3DB): 70 Hz ÷ 18 kHz
    • TYPE: Electret
    • SENSITIVITY: 65 dB
  • Physical specifications
    • COLOR: Grey

Physical & Dimensions

  • Height: 63mm
  • Width: 170mm
  • Depth: 154mm
  • Weight: 1kg

Product Downloads
