MMU3100 FORUM 3000 Master Unit for up to 80 Microphone Sets

« return to previous page

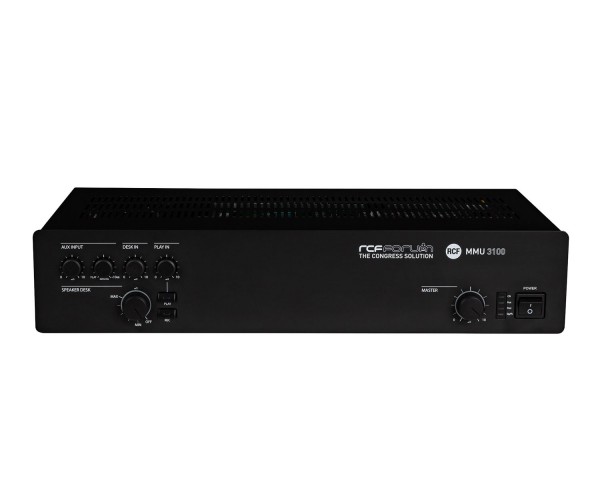

RCF MMU3100 FORUM 3000 Master Unit for up to 80 Microphone Sets - Main Image

RCF MMU3100 FORUM 3000 Master Unit for up to 80 Microphone Sets - Image 1

RCF MMU3100 FORUM 3000 Master Unit for up to 80 Microphone Sets - Image 2

RCF MMU3100 FORUM 3000 Master Unit for up to 80 Microphone Sets - Image 3

RCF MMU3100 FORUM 3000 Master Unit for up to 80 Microphone Sets - Image 4

Price:: RRP: £966.00 inc VAT
Code:: RCFMMU3100
Manufacturer Code:: 17180042
Brand:: RCF

Main Features

Input to connect up to 80 microphone sets with volume and voice EQ controls
Additional universal input on both XLR and removable screw terminals
Phantom power available
Input and outputs connections to an external recorder/player device
Teleconference dedicated input and output
Sound reinforcement and recording system output

MMU3100 Master Unit for up to 80 Microphone Sets on 100/70V

The MMU 3100 master unit includes all the features necessary to set-up a meeting for up to 80 microphone sets. Recording output and playback input are present as well, together with a dedicated input and output for teleconference system interfacing. The unit is able to provide 80W on its 100V or 70V output for the connection of additional sound reinforcement speakers present in the room. One line level output is available too, for the link to an independent sound reinforcement system. User controls are on front panel and include volume levels for inputs and powered outputs, directed to the reinforcement speakers integrated in each microphone console and to the ones connected to the amplifier direct output. Two devices MMU 3100 can be linked through a dedicated port, to expand the number of the delegate microphones to 160.

Product Features

Input to connect up to 80 microphone sets with volume and voice EQ controls
Additional universal input on both XLR and removable screw terminals for lectern microphone or interview microphone or other sources with volume and voice EQ controls
Phantom power available
Input and outputs connections to an external recorder/player device, PLAY / REC selector switches with LED indicators. Volume control and tone EQ on PLAY-OUT
Teleconference dedicated input and output
Sound reinforcement and recording system output
Built-in power amplifier to feed the consoles speakers with volume selector
Built-in 80W power amplifier output with volume control for additional constant voltage sound reinforcement speakers

Product Specifications

General

Amplifier specifications
- AMPLIFIER CLASS: D
- DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER: <1 %
- FREQUENCY RESPONSE (-3DB): 50 Hz ÷ 18 kHz
- NUMBER OF CHANNELS: 1
- POWER OUTPUT (@ 100 V): 160 W RMS
- SIGNAL/NOISE RATE (”A” WEIGHTED): >80 dB
Controls
- CONFIGURATION: DIP switch, Front panel
Processing
- HIGH-PASS FILTER: 0 Hz
- TONE CONTROLS: Yes
Input section
- BALANCED: 3
- GENERAL PURPOSE INPUTS (GPI): 1
- LINE CONNECTORS: RCA
- LINE INPUTS: 2
- MIC+LINE CONNECTORS: Euroblock, XLR
- MIC+LINE INPUTS: 4
- MIC+LINE PHANTOM: 32 V DC
- VOX: (MIC+LINE): Yes
- MONO: 7
- PAGING COMMAND: Contact
- PAGING CONNECTORS: RJ45
- PAGING INPUTS: 1
- TOTAL NUMBER OF INPUTS: 7
- UNBALANCED: 5
Output section
- SIGNAL OUTPUT CONNECTORS: RCA
- POWER OUTPUT CONNECTORS: Euroblock
- SIGNAL OUTPUT NUMBER: 3
Physical specifications
- CABINET/CASE MATERIAL: Metal
- COLOR: Black
- RACK MOUNTING: 19", 2U
Power requirement
- OPERATING VOLTAGE: 220-240/115 V~ 50/60Hz
- POWER CONSUMPTION: 350 W
- VOLTAGE SELECTION: Internal
Protections
- COOLING: Convection
- DC DELAY: Yes
- FUSES: Yes
- SHORT CIRCUIT: Yes
- THERMAL: Yes
