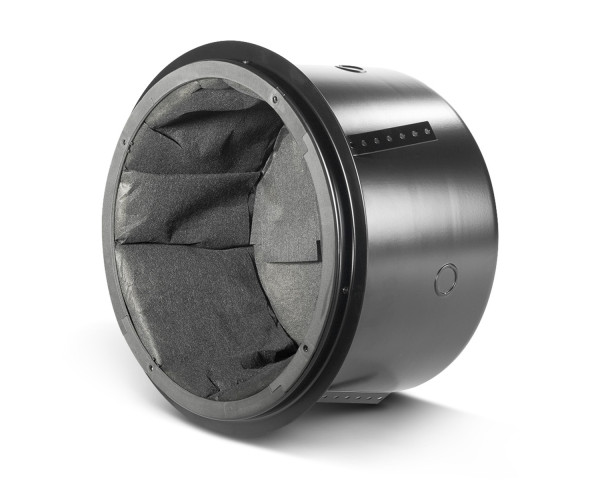

MTC-200BB6 Premium Cylindrical Backcan for Control 227C/CT

« return to previous page
JBL MTC-200BB6 Premium Cylindrical Backcan for Control 227C/CT - Main Image
JBL MTC-200BB6 Premium Cylindrical Backcan for Control 227C/CT - Image 1
JBL MTC-200BB6 Premium Cylindrical Backcan for Control 227C/CT - Image 2
Price:
RRP: £120.00 inc VAT
Code:
JBLMTC200BB6
Manufacturer Code:
JBL0734
Brand:
JBL

Quantity required:

Main Features

  • Backcan for Control 227C/CT
  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (1/2 in) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and side.
  • Includes mounting screws
  • Safety Agency Rating:  Suitable for use in air handling spaces, per U.L.-2043, U.L.- 1480, NFPA90, NFPA70A. In accordance with IEC60849 / EN60849
Share:

MTC-200BB6 Premium Cylindrical Backcan for Control 227C/CT

Backcan for Control 227C & CT Medium Format In-Ceiling Loudspeakers

Product Features

  • Backcan for Control 227C/CT
  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (1/2 in) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and side.
  • Includes mounting screws
  • Safety Agency Rating:  Suitable for use in air handling spaces, per U.L.-2043, U.L.- 1480, NFPA90, NFPA70A. In accordance with IEC60849 / EN60849

Product Specifications

  • External Volume:  0.7 cu ft, nominal
  • Internal Volume:  0.5 cu ft.
  • Knockouts:  22.1 mm (0.87 in) diameter opening
  • Five (5) locations:
    • 1 on top panel
    • 4 on side can
  • Safety Agency Rating:  Suitable for use in air handling spaces, per U.L.-2043, U.L.- 1480, NFPA90, NFPA70A. In accordance with IEC60849 / EN60849.
  • Dimensions (Height):
    • 193 mm (7.62 in) above ceiling
    • 206 mm (8.1 in) total height
  • (Diameter):  337 mm (13.3 in)
  • (Cut out):  310 mm (12.2 in)
  • Net Weight:  3.0 kg (6.5 lb)
  • Shipping Weight:  4.0 kg (9 lb)
  • Included Accessories:  4 pcs #10 x 0.75 in metal screws for another system of mounting baffle to backbox
