MTC-CBT-FM1 Flush Mount Bracket for CBT50/CBT100 Black

« return to previous page

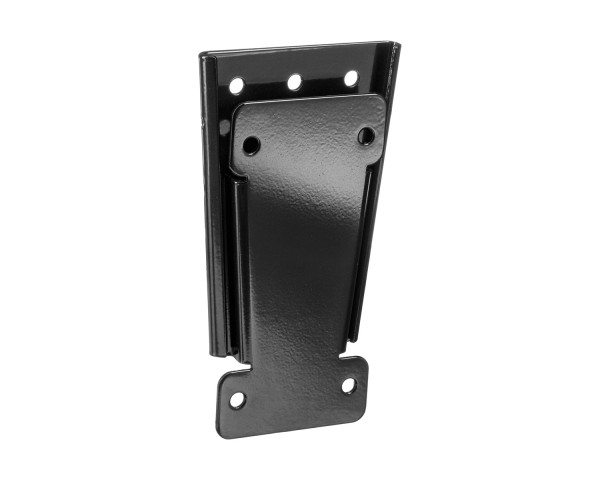

JBL MTC-CBT-FM1 Flush Mount Bracket for CBT50/CBT100 Black - Main Image
Price:
RRP: £84.00 inc VAT
Code:
JBLMTCCBTB
Manufacturer Code:
JBL1157
Brand:
JBL

Quantity required:

Main Features

  • For Use with CBT 50LA-1 and CBT 100LA-1
  • Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
  • Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
  • ROHS-Compliant Zinc Plating for Weather Resistance
  • For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
  • Finish: Black
Share:

MTC-CBT-FM1 Flush Mount Bracket for CBT50/CBT100 Black

Flush wall mount bracket for CBT50LA-1 and CBT100LA-1

Product Features

  • For Use with CBT 50LA-1 and CBT 100LA-1.
  • Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 107.6 mm x 50.8 mm (4-1/4 x 2 inch) spacing.
  • Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
  • Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
  • 2.25 mm thick (13-Gauge AWG) Metal
  • Bracket assembly spaces back of speaker within 16 mm (0.62 inches) of wall (typical).
  • Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
  • Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
  • ROHS-Compliant Zinc Plating for Weather Resistance
  • For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
  • Finish: Black

Product Specifications

  • 2.25 mm thick (13-Gauge AWG) Metal
  • ROHS-Compliant Zinc Plating
  • Colour:  Black
