MX415DUAL/C Microflex 15" Dual Capsule Gooseneck Mic + Preamp

« return to previous page

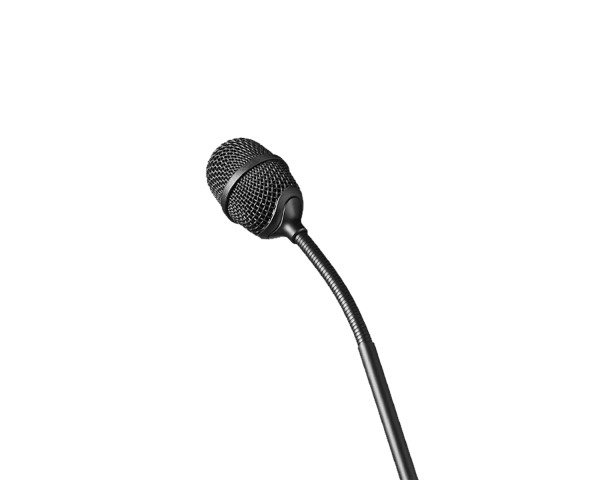

Shure MX415DUAL/C Microflex 15 Dual Capsule Gooseneck Mic + Preamp - Main Image
Shure MX415DUAL/C Microflex 15 Dual Capsule Gooseneck Mic + Preamp - Image 1
Shure MX415DUAL/C Microflex 15 Dual Capsule Gooseneck Mic + Preamp - Image 2
Shure MX415DUAL/C Microflex 15 Dual Capsule Gooseneck Mic + Preamp - Image 3
Shure MX415DUAL/C Microflex 15 Dual Capsule Gooseneck Mic + Preamp - Image 4
Price:
RRP: £828.00 inc VAT
Code:
SHUMX415DUALC
Manufacturer Code:
MX415DUAL/C
Brand:
Shure

Quantity required:

Main Features

  • Wide dynamic range and frequency response for accurate sound reproduction
  • Dual 1 cm cardioid Microflex® interchangeable cartridges
  • Dual 5-foot cables exiting out bottom of mic, terminating in two TQG Connectors
  • Two external in-line preamps
  • Shock mount provides over 20 dB of isolation from surface vibration noise
  • RF filtering with CommShield® technology
Share:

MX415DUAL/C Microflex 15" Dual Capsule Gooseneck Mic + Preamp

The Shure Microflex® MX415DUAL dual-capsule gooseneck microphone features two electret condenser cartridges mounted in a single low-profile housing and two preamp-equipped outputs providing redundant audio for critical, multi-feed live sound and professional broadcast applications. With a 15” overall length, the MX415DUAL includes a flexible top gooseneck section for optimal placement, and includes all the mounting accessories required for installation into a lectern or tabletop configuration.

Product Features

  • Wide dynamic range and frequency response for accurate sound reproduction
  • Dual 1 cm cardioid Microflex® interchangeable cartridges
  • Dual 5-foot cables exiting out bottom of mic, terminating in two TQG Connectors
  • Two external in-line preamps
  • Shock mount provides over 20 dB of isolation from surface vibration noise
  • RF filtering with CommShield® technology

Product Specifications

  • Cartridge Type:  1 cm electret condenser
  • Frequency Response:  50 Hz – 17 kHz
  • Polar Pattern:  Cardioid
  • Output Impedance:  180 Ω
  • Output Configuration:  Dual active balanced with redundant grounding
  • Sensitivity (@ 1 kHz, open circuit voltage):  –35 dBV/Pa (18 mV)
  • Maximum SPL (1 kHz at 1% THD, 1 kΩ load):  124 dB
  • Self Noise (A-weighted):  28 dB SPL
  • Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz):  66 dB
  • Dynamic Range (1 kΩ load, @ 1 kHz):  96 dB
  • Common Mode Rejection (10 Hz to 100 kHz):  45 dB minimum
  • Polarity:  Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Weight:  205 g (7.23 oz)
  • Power Requirements:  11–52 V DC phantom, 2.0 mA

What's in the Box?

  • Mic Swivel Adapter
  • Extension Tube
  • Mounting Flange
  • Locking Mounting Flange
  • Shock Mount
  • Inline Preamps x 2
  • Preamp Mounting Plates x 2
  • Ball Grille Windscreen
  • Snap Fit Foam Windscreen
  • Vinyl Storage Pouch
