N8031MS IP Intercom Master Station

« return to previous page

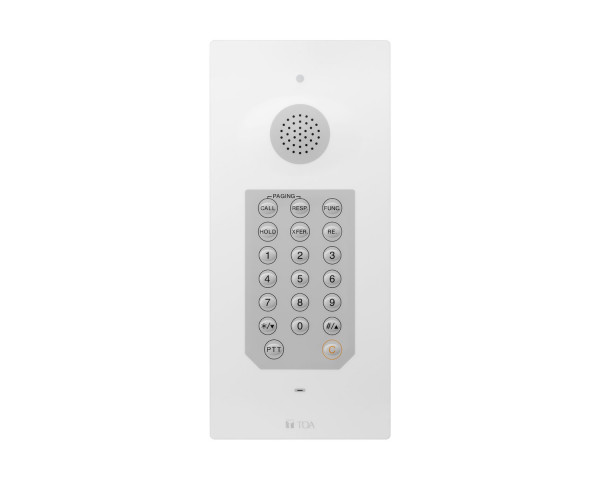

TOA N8031MS IP Intercom Master Station - Main Image
Price:
RRP: £510.00 inc VAT
Code:
TOAN8031MS
Manufacturer Code:
N-8031MS
Brand:
TOA

Quantity required:

Main Features

  • Paging and Communication function
  • Hands-free conversation
  • Contact Input
  • High sound quality
  • Chemical resistant (clean room)
  • Status LED
Share:

N8031MS IP Intercom Master Station

The N-8033MS is a flush- or surface-mount master station designed to operate in conjunction with TOA IP Intercom Exchange and features high quality hands-free conversation. Connecting a foot switch or other external switch to the external dial input terminal permits one-touch dialing operation by way of such switches.

Product Features

  • Paging and Communication function
  • Hands-free conversation
  • Contact Input
  • High sound quality
  • Chemical resistant (clean room)
  • Status LED

Product Specifications

  • Power Source:  48 V DC (supplied from the IP intercom exchange)
  • Power Consumption:  1.8 W (at rated), 2.4 W (max.)
  • Wiring Method:  1 set of twisted pair cable
  • Transmission System:  2 wire 160 kbps echo canceller transmission system
  • Signal Level:  0 dB* or less
  • Speech Method:  Hands-free conversation
  • Audio Frequency Range:  300 Hz - 7 kHz
  • Transmission Range:  Max. 1500 m (1640.42 yd) (φ0.65 mm (AWG22), Loop resistance 170 Ω)
  • Hands-free:
    • Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω
    • Microphone: Omni-directional electret condenser microphone
  • Indication:  Status lamp
  • Line Connecting Terminal:  Pin header (2 pins)
  • External Dial Input:  No-voltage make contact input, open voltage: 5 V DC, short-circuit current: 1 mA, screwless connector (5 pins)
  • Installation Method:  Flush-mount/Surface-mount
  • Operating Temperature:  0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
  • Operating Humidity:  90 %RH or less (no condensation)
  • Dust/Water Protection:  IP65 (Note that panel edges must be sealed at installation.)
  • Resistance to Environment:  Passed our chemical-resistant test
  • Finish:  Membrane switch (Front pasting) : Polyester film
  • Dimensions:  115 (W) × 254 (H) × 51 (D) mm (4.53" × 10" × 2.01")
  • Weight:  850 g (1.87 lb)
  • Accessories:
    • Box mounting screw (M4 × 35) x 4
    • Acoustic absorbent x 1
    • Removable terminal plug (2 pins, preinstalled on the unit) x 1

What's in the Box?

  • Box mounting screw (M4 × 35) x 4
  • Acoustic absorbent x 1
  • Removable terminal plug (2 pins, preinstalled on the unit) x 1
