P1108T 1x8"+1" 2-Way Weather-Proof Loudspeaker 100W IP55

« return to previous page

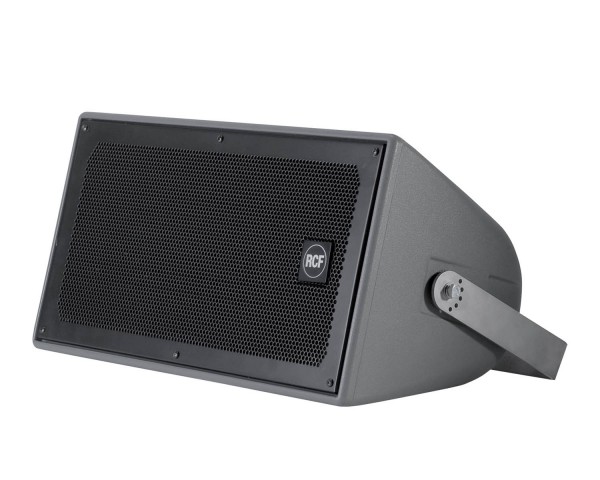

RCF P1108T 1x8+1 2-Way Weather-Proof Loudspeaker 100W IP55 - Main Image
RCF P1108T 1x8+1 2-Way Weather-Proof Loudspeaker 100W IP55 - Image 1
RCF P1108T 1x8+1 2-Way Weather-Proof Loudspeaker 100W IP55 - Image 2
Price:
RRP: £650.40 inc VAT
Code:
RCFP1108T
Manufacturer Code:
13000203
Brand:
RCF

Quantity required:

Main Features

  • 100 W RMS
  • Weatherproof cabinet IP 55
  • Aluminium grill and stainless steel bracket
  • PTC Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • 2 metres 4 x 1.5 Input cable
Share:

P1108T Acustica 1x8"+1" Weather-Proof Speaker 100V/60W

The P1108-T is a weatherproof full range, wide-dispersion, two way loudspeaker system suitable for several indoor or outdoor applications where good speech intelligibility and music reproduction are required.

In a single-piece rotational moulded UV protected polyethylene cabinet the P1108-T combines a 1,5” diaphragm assembly compression driver loaded on a 1” rotatable constant directivity 90°x60°CD horn with a 8” high efficiency low-frequency transducer with a 1.5” voice coil.

The cabinet is equipped with 4 x M 8 brass inserts and a steel U-Bracket. The front logo is in aluminium and rotatable. The grille is in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing. P1108-T is suitable for indoor and outdoor installations, it meets the requirements of IP 55 code (International Protection Rating).

Product Features

  • 100 W RMS
  • Weatherproof cabinet IP 55
  • Aluminium grill and stainless steel bracket
  • One 8" high-output LF transducer with 1.5" voice coil
  • One RCF Precision 1" Compression Driver with 1.5" voice coil
  • 90° x 60° constant directivity horn
  • 2° x 15° enclosure sides for cluster configurations
  • PTC Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • 2 metres 4 x 1.5 Input cable

Product Specifications

General

  • Acoustical Specifications
    • Frequency Response -10 dB: 80 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 121 dB
    • Horizontal coverage angle: 90°
    • Vertical coverage angle: 60°
    • Directivity index; Q: 11
    • System Sensitivity: 95 dB
    • Nominal Impedance: 16 Ω
    • Power Handling: 100 W
    • Peak Power Handling: 400 W
    • Recommended Amplifier: 200 W
    • Protections: Dynamic protection on Compression Driver
    • Crossover frequencies: 2200 Hz
  • Transducers
    • Compression Driver: 1" throat, 1.5" coil diaphragm assembly
    • Nominal Impedance: 8 Ω
    • Input Power Rating: 20 W AES
    • Sensitivity: 107 dB
    • Woofer: 8" woofer, 1.5" voice coil
    • Nominal Impedance: 16 Ω
    • Input Power Rating: 100 W AES
    • Sensitivity: 94 dB
  • Input Section
    • Input connector: 4 x 1.5 mm square 2 m Neoprene cable
    • Constant voltage transformer: 70/100
    • Power Selection: 70V/30W, 15W - 100V/60W, 30W
  • Cabinet
    • Cabinet Material: 8 mm Polyethylene rotomoulded
    • Hardware: 4 x M8 + U-Bracket and Pair of spacers
    • Grille: Custm perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
    • Colour: Grey

Physical & Dimensions

  • Height: 266mm
  • Width: 493mm
  • Depth: 250mm
  • Weight: 12.5kg
