P6215 15"+2" 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55

« return to previous page
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Main Image
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 1
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 2
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 3
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 4
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 5
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 6
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 7
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 8
RCF P6215 15+2 2-Way Coaxial Weather-Proof Loudspeaker 600W IP55 - Image 9
Price:
RRP: £1,729.20 inc VAT
Code:
RCFP6215
Manufacturer Code:
13000131
Brand:
RCF

Quantity required:

Main Features

  • Front grille in custom perforated aluminium
  • One 15" high-output LF transducer with 3" voice coil
  • One RCF Precision 1.3" C. Driver with 2.5" voice coil
  • Active Mosfet Compression Driver Protection
  • 12 brass suspension points (M10)
  • Line transformer
Share:

P6215 Acustica 15"+2" Coax Weather-Proof Speaker 600W

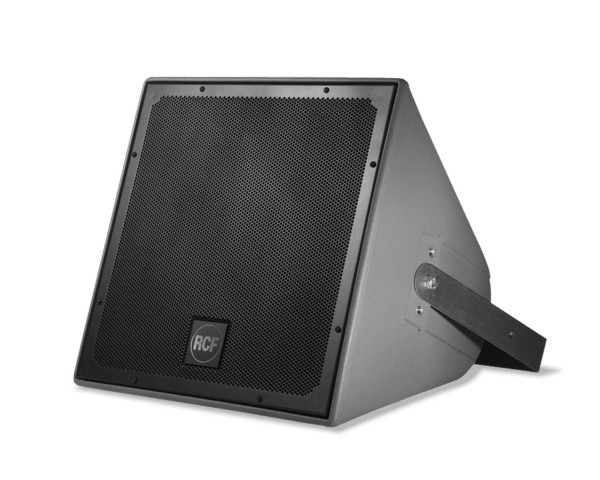

The P6215 is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system for very high output and longer throw applications.

The high-frequency section is a constant directivity CMD horn loaded to a 1.3” RCF Precision compression driver with a 2.5” diaphragm assembly for smooth, wide dispersion.

The low frequency transducer is a 15” woofer with a 3” voice coil. The cabinet is equipped with 12 x M10 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. P6215 meets the requirements of IP 55 code (International Protection Rating)

Product Features

  • Cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected and waterproof IP 55
  • Front grille in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing
  • Stainless steel bracket
  • One 15" high-output LF transducer with 3" voice coil
  • One RCF Precision 1.3" C. Driver with 2.5" voice coil
  • 60° x 60° conical horn
  • 10° X 20° enclosure sides for array configurations
  • Active Mosfet Compression Driver Protection
  • 12 brass suspension points (M10)
  • Line transformer

Product Specifications

General

  • Acoustical Specifications
    • Frequency Response -10 dB:75 Hz ÷ 20000 Hz
    • Max SPL @ 1m:134 dB
    • Horizontal coverage angle:60°
    • Vertical coverage angle:60°
    • Directivity index; Q:12.8
    • System Sensitivity:100 dB
    • Nominal Impedance:8 Ω
    • Power Handling:600 W
    • Peak Power Handling:2400 W
    • Protections:Dynamic
    • Crossover frequencies:1100 Hz
  • Transducers
    • Compression Driver:1.3" HF driver, 2.5" voice coil
    • Nominal Impedance:8 Ω
    • Input Power Rating:90 W AES
    • Sensitivity:108 dB
    • Woofer:15" woofer, 3" coil
    • Nominal Impedance:8 Ω
    • Input Power Rating:90 W AES
    • Sensitivity:101 dB
  • Input Section
    • Input connector:4 x 1.5mm square, 5m Neoprene cable
  • Cabinet
    • Cabinet Material:Polyethylene rotomoulded
    • Hardware:12 x M10 inserts
    • Grille:Custom perforated aluminium grillewith open-cell fiber and water repellent woven fabric backing
    • Colour:Grey

Physical & Dimensions

  • Height: 463mm
  • Width: 463mm
  • Depth: 433mm
  • Net Weight: 19.2kg
