P3108 1x8"+1" 2-Way Weather-Proof Loudspeaker 300W IP55

« return to previous page

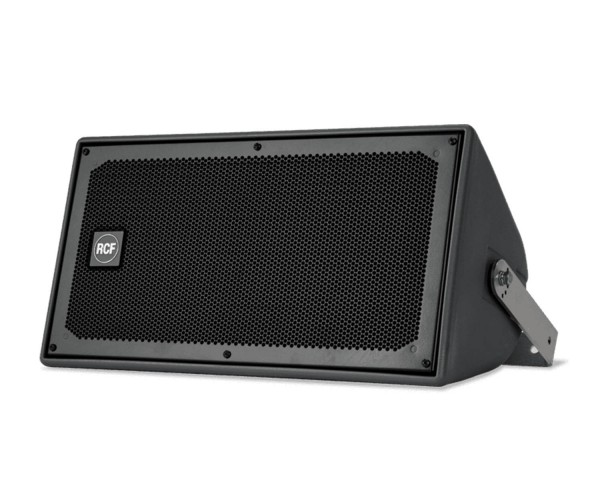

RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Main Image
RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Image 1
RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Image 2
RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Image 3
RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Image 4
RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Image 5
RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Image 6
RCF P3108 1x8+1 2-Way Weather-Proof Loudspeaker 300W IP55 - Image 7
Price:
RRP: £1,036.80 inc VAT
Code:
RCFP3108L
Manufacturer Code:
13000198
Brand:
RCF

Quantity required:

Main Features

  • Stainless steel bracket
  • Built in passive crossover and selectable line transformer
  • Active Mosfet Compression Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • Front grille in custom perforated aluminium
  • 12 brass suspension points (M8)
Share:

P3108 Acustica 1x8"+1" Weather-Proof Speaker 300W

The P2110-T is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

The high-frequency section is a constant directivity CMD horn loaded to a 1” RCF Precision compression driver with a 1.50” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 10” woofer with a 2.5” voice coil. The cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected.

The cabinet is equipped with 12 x M 8 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. The front logo is in aluminium and rotatable. The grille is in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing.

The system features a selectable line transformer for 70 - 100 Volt applications. P 2110-T is suitable for indoor and outdoor applications/installations, it meets the requirements of IP 55 code (International Protection Rating).

Product Features

  • Cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected and waterproof IP 55
  • Front grille in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing
  • Stainless steel bracket
  • One 10" high-output LF transducer with 2" voice coil
  • One RCF Precision 1" Compression Driver with 1.5" voice coil
  • 90° x 40° constant directivity horn
  • Built in passive crossover and selectable line transformer
  • 10° X 20° enclosure sides for array configurations
  • Active Mosfet Compression Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • 12 brass suspension points (M8)

Product Specifications

General

  • Acoustical Specifications
    • Frequency Response -10 dB: 95 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 124 dB
    • Horizontal coverage angle: 90°
    • Vertical coverage angle: 40°
    • Directivity index; Q: 11
    • System Sensitivity: 95 dB
    • Nominal Impedance: 16 Ω
    • Power Handling: 200 W
    • Peak Power Handling: 800 W
    • Recommended Amplifier: 400 W
    • Protections: Dynamic
    • Crossover frequencies: 2000 Hz
  • Transducers
    • Compression Driver: 1" HF driver, 1,5" voice coil
    • Nominal Impedance: 8 Ω
    • Input Power Rating: 25 W AES
    • Sensitivity: 106 dB
    • Woofer: 10" woofer, 2.5" voice coil
    • Nominal Impedance: 16 Ω
    • Input Power Rating: 180 W AES
    • Sensitivity: 95 dB
  • Input Section
    • Input connector: 5m, 4-adriges Neopren Kabel
    • Constant voltage transformer: 70/100
    • Power Selection: 70V/30W, 15W, 100V/60W, 30W
  • Cabinet
    • Cabinet Material: Polyethylene rotomoulded
    • Hardware: 12 x M8 inserts+ U-brackets and pair of spacers
    • Grille: Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
    • Colour: Grey

Physical & Dimensions

  • Height: 350mm
  • Width: 350mm
  • Depth: 320mm
  • Weight: 13.5kg

Product Downloads
