PE304 12cm Pendant Suspending Speaker 30W/100V White

« return to previous page

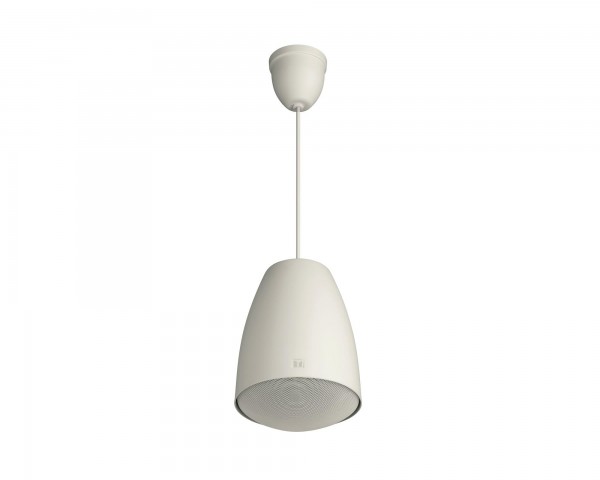

TOA PE304 12cm Pendant Suspending Speaker 30W/100V White - Main Image
Price:
RRP: £108.00 inc VAT
Code:
TOAP304
Manufacturer Code:
PE-304
Brand:
TOA

Quantity required:

Main Features

  • Ideally suited for BGM and announcements
  • Stylish and outstanding design inspired by the finest lighting fixtures
  • Excellent sound quality
  • Sturdy cable extendable up to 5 meters
  • Paintable
  • Input impedance easily changeable
Share:

PE304 12cm Pendant Suspending Speaker 30W/100V White

The PE-304 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

Product Features

  • Ideally suited for BGM and announcements
  • Stylish and outstanding design inspired by the finest lighting fixtures
  • Excellent sound quality
  • Sturdy cable extendable up to 5 meters
  • Paintable
  • Input impedance easily changeable
  • Bass-reflex type

Product Specifications

General

  • Enclosure: Bass-reflex type
  • Rated Input: 30 W (100 V, 70 V line, 8 Ω)
  • Rated Impedance: 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W). 8 Ω
  • Sensitivity: 91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
  • Frequency Response: 70 - 20,000 Hz (peak -20 dB)
  • Speaker Component: 12 cm (5") cone-type + balanced dome-tweeter
  • Speaker Cord: 2-core cabtyre cord 5 m (16.4 ft)
  • Connection: Push-in connector (bridging terminal-2 branch type)

Physical & Dimensions

  • Finish: Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color). Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
  • Dimensions: 186 × 251 (H) mm (7.32" × 9.88") (unit only)
  • Weight: 2.1 kg (4.63 lb) (unit only)
