PE-304BU 12cm Pendant Suspending Speaker 30W Dual Imp BLACK

« return to previous page

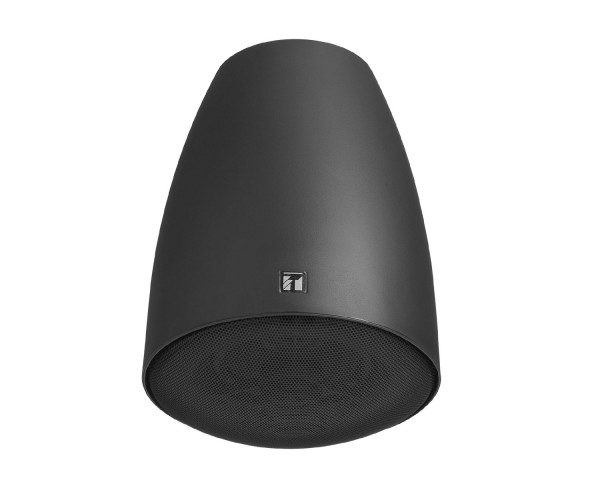

TOA PE-304BU 12cm Pendant Suspending Speaker 30W Dual Imp BLACK - Main Image
Price:
RRP: £222.00 inc VAT
Code:
TOAP304BU
Manufacturer Code:
PE-304BU
Brand:
TOA

Quantity required:

Main Features

  • Stylish design inspired by modern lighting fixtures
  • Ideally suited for BGM & announcements
  • Input impedance is easily changed with a rotary switch on the top of the speaker
  • With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
  • Bass-reflex type
  • Finish: Black
Share:

PE-304BU 12cm Pendant Suspending Speaker 30W - Black

The PE-304BU and PE-304WU are pendant speakers designed for the installations suspended from a ceiling. A directly-attached 5 m (16.4 ft) hanging wire allows the speaker to be suspended from high ceilings. These speakers can be driven on both high-impedance (100 V, 70 V and 25 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the rear side of the speaker

Product Features

  • Stylish design inspired by modern lighting fixtures
  • Ideally suited for BGM & announcements
  • 8 Ω and 25 V/70 V/100 V operation
  • Input impedance is easily changed with a rotary switch on the top of the speaker
  • With speaker cable, GRIPPLE® hanging wire & safety wire pre-attached, for faster, easier and more secure installation
  • UL certified: UL Code: UL1480 UUMW, ULC-S541
  • Bass-reflex type
  • Finish: Black

Applications

  • Supermarkets
  • Shopping centres
  • Restaurants
  • Educational facilities
  • Airports
  • Commercial facilities
  • Hotels

Product Specifications

General

  • Frequency response:  95 Hz - 20 kHz (-10 dB from sensitivity)
  • Sensitivity (1 W, 1 m):  90 dB (330 Hz – 3.3 kHz, pink noise)
  • Speaker component:  12 cm cone-type + balanced-dome tweeter (coaxial)
  • Rated input (High Impedance):  30 W
  • Tappings
    • 100V line: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1.3W)
    • 70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W), 10kΩ (0.6W)
    • 25V line: 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.1W)Low impedance: 8Ω
  • Rated impedance:  8 Ω

Physical

  • Dimensions (ø x D) 186 x 275
  • Finish:  HIPS resin, black (RAL 9011 or equivalent)
