PE154BS 15W Pendant Speaker EN54

« return to previous page

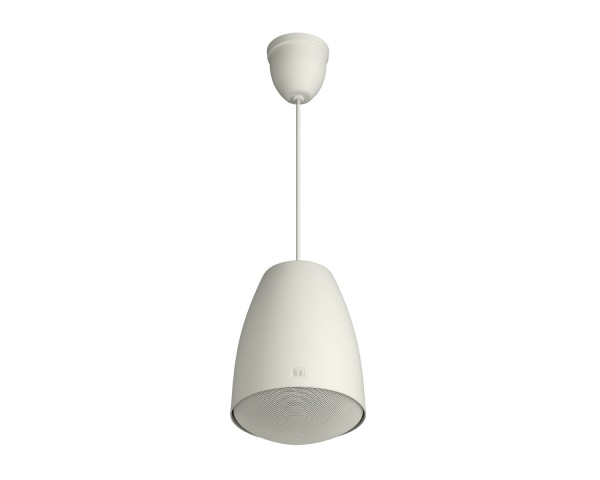

TOA PE154BS 15W Pendant Speaker EN54 - Main Image
Price:
RRP: £210.00 inc VAT
Code:
TOAPE154BS
Manufacturer Code:
PE-154BS
Brand:
TOA

Quantity required:

Main Features

  • Special design to blend with lighting equipment
  • Rugged HIPS resin enclosure
  • Excellent sound quality
  • 3 m fire resistant cable
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8
Share:

PE154BS 6W Pendant Speaker EN54

The PE-154BS is an EN 54 certified pendant loudspeaker for use in voice alarm systems. The two-way loudspeaker is suitable for announcement and music applications and convinces with a wide frequency range and stylish design. A directly attached, sturdy suspension cable can be extended up to 3 meters.

Product Features

  • Special design to blend with lighting equipment
  • Rugged HIPS resin enclosure
  • Excellent sound quality
  • 3 m fire resistant cable
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8

Product Specifications

  • Frequency response:  70 Hz - 20 kHz
  • Connection:  Ceramic screw terminals, thermal fuse
  • Sensitivity (1 W, 1 m):  91 dB (500 Hz – 5 kHz, pink noise)
  • Speaker component:  Low: 5" cone-type, High: 1" balanced dome tweeter
  • Rated input (High Impedance):  15 W
  • Tappings:  15 / 10 / 5 W (100 V)
  • Finish:  HIPS resin, off-white (RAL 9010 or equivalent)
  • Dimensions:  186 x 251 mm (W x H)
  • Weight:  2.33 kg

What’s in the Box?

  • Ceiling bracket x 1
  • Mounting hanger x 1
  • Ceiling cover x 1
  • Ceiling bracket mounting screw x 4

Product Downloads
