Wireless Microphone Systems
We do our best to keep healthy stocks across the many Wireless Microphone System SKUs but in the rare case where we don't have your required system in stock, please contact our sales team as we can often make your product to order by borrowing the system components (transmitters, receivers or mics) from other stocked systems.
Shopping Basket
The product has been added to your basket
Main Features
For VM-2000
Surveillance of power amplifier
Impedance surveillance of speaker lines
Selectable check period 10 - 60 minutes.
Control outputs for status of each line and amplifier
Control inputs for de-activating each speaker output

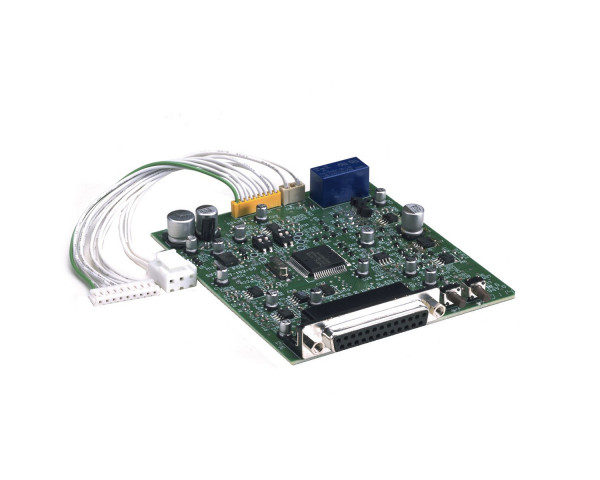

SV200MA Surveillance Board (for VM2120 or VM2240 Amplifier)
Designed to be built in the VM-2120/-2240 amplifiers, the SV-200MA permits monitoring of individual speaker lines and the power amplifier.
Product Features
For VM-2000
Surveillance of power amplifier
Impedance surveillance of speaker lines
Selectable check period 10 - 60 minutes.
Control outputs for status of each line and amplifier
Control inputs for de-activating each speaker output
Product Specifications
Applicable model: VM-2000
Power source: 24 V DC (provided by VM-2000)
Current consumption: 120 mA
Control input: Speaker line check, impedance initialisation. No-voltage make contact, open voltage: 3.3 VDC, short circuit current: under 1 mA
Control output: Per speaker line: short, break; amplifier fault; earth leakage; initialisation busy; initialisation error. Open-collector: withstand voltage: 30 VDC, control current: less than10 mA
Input / Output:
Per zone: zone status (output), de-activate zone (input); attenuator bypass status (output), de-activate (input), external SP input status (output), de-activate (input)
Inputs: no-voltage make contact input, open voltage 24 VDC, max. current 60 mA
Outputs: open collector, withstand voltage 24 VDC, max. 20 mA
Connection: 25-pin sub-D terminal, female. Cable set for connections inside VX-2000
