Vortex 10A 10" 2-Way Active Portable PA Speaker 350W

« return to previous page

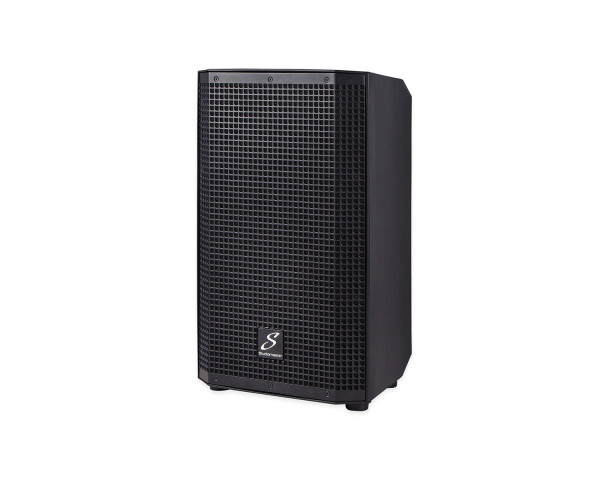

Studiomaster Vortex 10A 10 2-Way Active Portable PA Speaker 350W - Main Image
Studiomaster Vortex 10A 10 2-Way Active Portable PA Speaker 350W - Image 1
Studiomaster Vortex 10A 10 2-Way Active Portable PA Speaker 350W - Image 2
Studiomaster Vortex 10A 10 2-Way Active Portable PA Speaker 350W - Image 3
Price:
RRP: £359.00 inc VAT
Code:
STUVOR10A
Manufacturer Code:
5060255345412
Brand:
Studiomaster

Quantity required:

Main Features

  • 1400W 2-way amplification
  • 124dB SPL
  • Multiple M10 flying points
  • Dual top hat sockets:  Straight (0 degree) Angled (10 degree)
  • Floor monitor suitable
  • Bluetooth playback with TWS facility
Share:

Vortex 10A 10" 2-Way Active Portable PA Speaker 350W

A brand new 10″ active moulded speaker cabinet. Featuring high performance 1400W (peak) power amplifiers and a unique coaxial speaker configuration. The Vortex series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets.

The all new VORTEX series feature set is considerable, with Bluetooth input with TWS, built in DSP control, Dual 35mm top hat sockets, triple input channels, multiple M10 flying points, up to 3 carry handles for portability and much more.

Product Features

  • Full face front grille
  • Moulded cabinet
  • 12.5kg
  • Portable: top and side
  • 1400W 2-way amplification
  • 124dB SPL
  • Multiple M10 flying points
  • Dual top hat sockets:  Straight (0 degree) Angled (10 degree)
  • Floor monitor suitable
  • Bluetooth playback with TWS facility
  • 24 BIT DSP
  • 3 Band EQ
  • Multiple operation modes
  • Limiter
  • Time delay
  • 2x mic / line
  • 1x 3.5mm line
  • Bluetooth
  • Selectable between input A and full mix

Product Specifications

  • Cabinet Type:  10″ 2-way coaxial active
  • Max SPL:  124dB
  • Amp Peak:  1400w
  • Max PGM:  700w
  • Amp RMS:  350w (300+50)
  • Weight (Net):  12.5kg
  • Freq Response:  55Hz-20kHz
  • Input Sensitivity:  0dBu
  • Coverage (h x v):  80 x 80 degree
  • LF Driver:  10″ / 50mm VC
  • HF Driver:  34mm VC / 1″ throat
  • Crossover Frequency:  2.2kHz
  • 24bit DSP:  Mode select, 3 band EQ, delay, volume
  • DSP Modes:  Music, live, dj, speech, monitor
  • Connection:  2x XLR/JACK input, 1x 3.5mm, XLR output
  • Connectivity:   Bluetooth playback
  • Mounting:   Dual top-hat, 5x M10 flying points
  • Dimensions (W/H/D):  310 / 515 / 280mm
