Vortex 15A 15" 2-Way Active Portable PA Speaker 350W

« return to previous page

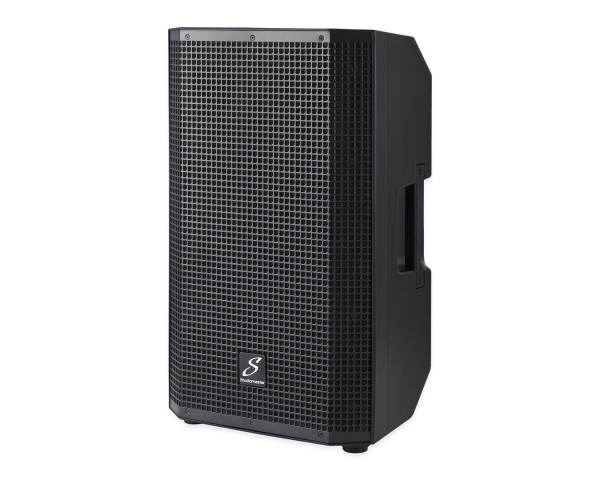

Studiomaster Vortex 15A 15 2-Way Active Portable PA Speaker 350W - Main Image
Studiomaster Vortex 15A 15 2-Way Active Portable PA Speaker 350W - Image 1
Studiomaster Vortex 15A 15 2-Way Active Portable PA Speaker 350W - Image 2
Studiomaster Vortex 15A 15 2-Way Active Portable PA Speaker 350W - Image 3
Price:
RRP: £429.00 inc VAT
Code:
STUVORTEX15A
Manufacturer Code:
5060255346037
Brand:
Studiomaster

Quantity required:

Main Features

  • Coaxial 15″ Active full range speaker cabinet
  • 128dB Max SPL
  • 1400W power
  • Multiple inputs
  • Bluetooth & DSP control
  • Dual top-hat, 5x M10 flying points
Share:

Vortex 15A 15" 2-Way Active Portable PA Speaker 350W

Vortex is a range active moulded speaker cabinets. Featuring high performance 1400W (peak) power amplifiers, and a unique coaxial speaker configuration, the VORTEX series are designed to perform and exceed your expectations and requirements for lightweight, portable PA cabinets. The Vortex series feature set is considerable with Bluetooth input input (with TWS), built in DSP, dual 35mm top hat sockets, 3 input channels, multiple m10 flying points, multiple carry handles and much more.

Product Features

  • Coaxial 15″ Active full range speaker cabinet
  • 128dB Max SPL
  • 1400W power
  • Multiple inputs
  • Bluetooth & DSP control
  • Dual top-hat, 5x M10 flying points

Product Specifications

  • MAX SPL:  128dB
  • AMP PEAK:  1400W
  • AMP PGM:  700W
  • AMP RMS:  350W(300+50)
  • Cabinet type:  2-way coaxial active
  • Frequency response:  50Hz-20kHz
  • Input sensitivity:  0dBu
  • Coverage(H x V):  80° x 80°
  • LF Driver:  15" / mm
  • HF Driver: 34mm VC / 1" throat
  • Crossover frequency:  2.2kHz
  • DSP-24bit:  5 modes (music/live/dj/speech/monitor), 3 band EQ, delay, volume
  • Connection:  2 x XLR / JACK input+3.5mm, XLR output
  • Mounting:  Dual top-hat, 5x M10 flying points
  • Dimension (W × H × D):  410x660x350 mm
  • Net Weight:  19kg
