WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65

« return to previous page
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Main Image
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Image 1
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Image 2
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Image 3
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Image 4
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Image 5
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Image 6
CHAUVET Professional WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65 - Image 7
Price:
RRP: £11,158.80 inc VAT
Code:
CHAWP2X6
Manufacturer Code:
WELLPOD2X6
Brand:
CHAUVET Professional

Quantity required:

Main Features

  • 6 battery operated black IP65-rated par style fixtures
  • 7 RGB warm white LEDs, and a beam angle of 12.8 degrees
  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
  • Built-in battery charger allows fixture to operate while charging
  • Built-in IP65 5-pin DMX in/out allows for wired data
  • Built in Seetronic IP65 PowerKon input/output
Share:

WELL POD 2X6 LED PAR Fixtures 6x in Charging Case IP65

WELL Pod 2 x6 is a compact addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability.

Product Features

  • A fully realized kit of (6) battery operated black IP65-rated par style fixtures with (7) RGB warm white LEDs, and a beam angle of 12.8 degrees
  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
  • Built-in battery charger allows fixture to operate while charging
  • Built-in IP65 5-pin DMX in/out allows for wired data
  • Built in Seetronic IP65 PowerKon input/output
  • Control over DMX, CRMX, RDM, or RF
  • Easy connection to WELL CONNECT for app control
  • USB-C port for convenient software updates
  • Removable split yoke for both hanging and floor standing
  • Pressure equalizing M6 Gore valve
  • Built-in safety cable attachment point
  • Easy-to-read OLED display
  • Built-in theft alarm (audio and visual notification)
  • Built-in PWM adjustment
  • Included RF remote
  • Included 6 pack charging case

Product Specifications

Optical

  • Light Source:  7 LEDs (RGBW) 7.5 W, (556 mA), 50,000 hours life expectancy
  • Colour Temperature (range):  2800 to 6500 K
  • Beam Angle:  11.5°
  • Field Angle:  21.6°
  • Cutoff Angle:  36.9°
  • Lumens:  1797 lm (AC power)
  • Illuminance:  lux 1089 @ 5 m (AC power)
  • Lumens:  718 lm (OFF battery setting)
  • Illuminance:  436 lux @ 5 m (OFF battery setting)
  • Lumens:  834 lm (5-hour battery setting)
  • Illuminance:  507 lux @ 5 m (5-hour battery setting)
  • Lumens:  528 lm (8-hour battery setting)
  • Illuminance:  319 lux @ 5 m (8-hour battery setting)
  • Lumens:  335 lm (12-hour battery setting)
  • Illuminance:  202 lux @ 5 m (12-hour battery setting)
  • Lumens:  214 lm (18-hour battery setting)
  • Illuminance:  129 lux @ 5 m (18-hour battery setting)
  • Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

  • Dimmer:  Electronic
  • Shutter/Strobe:  Electronic
  • Strobe Rate:  1 to 30 Hz
  • Standalone Colour Mixing:  Yes
  • Colour Temperature Presets:  Yes
  • Dim Modes:  4
  • Dim Curves:  4
  • Built-in Automated Programs:  Yes
  • Customisable Programs:  No
  • Recall Custom Programs:  No

Control

  • Control Protocol:  RDM, CRMX, NFC, RF
  • DMX Channels:  5, 8, or 12
  • Modes/Personalities:  3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX “G” Compatibility:  G4S
  • Wireless Lumen Radio Compatibility:  CRMX

Electrical

  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Single unit
    • Power Linking:  40 units @ 120 V; 64 units @ 208 V; 72 units @ 230 V
    • Power and Current:  48 W, .4 A @ 120 V, 60 Hz
    • Power and Current:  47.8 W, .23 A @ 208 V, 60 Hz
    • Power and Current:  48.3 W, .21 A @ 230 V, 50 Hz
  • 6 Pack case
    • Power Linking:  3 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V
    • Power and Current:  340 W, 3.33 A @ 120 V, 60 Hz
    • Power and Current:  334 W, 1.89 A @ 208 V, 60 Hz
    • Power and Current:  336 W, 1.72 A @ 230 V, 50 Hz

Battery

  • Battery type:  Lithium Ion
  • Rechargeable:  Yes
  • Battery Charge Time:  2 hours
  • Battery Life:  12 hours
  • Battery Power:  25.9 V, 2.5 Ah

Certifications / Qualifications

  • CE, UKCA, FCC, ROHS
  • IP Rating:  IP65, temporary outdoor/wet use
  • Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Connections

  • Power Connection:  Edison (local) plug to Seetronic PowerKon IP65
  • Power Input (fixture and charging case):  Seetronic PowerKon IP65
  • Power Output (fixture and charging case):  Seetronic PowerKon IP65
  • Data Connectors:  5-pin XLR
  • Cable Length (power):  5 ft (1.5 m)
  • Software Connection:  USB-C

Construction / Physical

  • Dimensions:  8.11 x 5.31 x 8.76 in (206 x 138 x 222.5 mm)
  • Dimensions (w/o bracket):  5.43 x 5.43 x 5.67 in (138 x 138 x 144 mm)
  • Dimensions case:  32.7 x 19.3 x 15.4 in (832 x 492 x 390mm)
  • Weight:  7.2 lb (3.3 kg)
  • Exterior Colour:  Black
  • Housing Material:  Aluminium die-cast

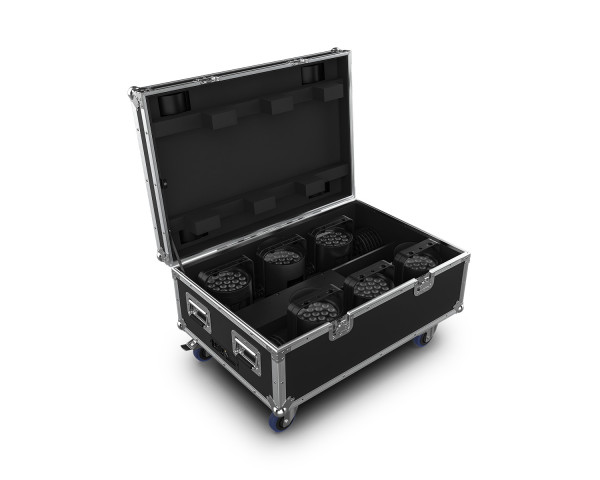

What's in the Box?

  • 6 x WELL POD 2
  • 1 x 6 slot charging case
  • 6 x detachable split yokes
  • 1 x RF controller
  • 1 x QRG
